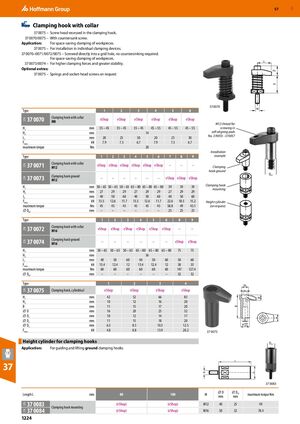

GBP 57 ​ Clamping hook with collar 37 0075 – Screw head recessed in the clamping hook. 37 0070/0075 – With countersunk screw. Application: For space-saving clamping of workpieces. 37 0075 – For installation in individual clamping devices. 37 0070–0071/0072/0075 – Screwed directly into a grid hole, no countersinking required. For space-saving clamping of workpieces. L1 37 0073/0074 – For higher clamping forces and greater stability. Optional extras: H2 37 0075 – Springs and socket-head screws on request H1 37 0070 M Type 1 2 3 4 5 6 Clamping hook with collar 37 0070 eShop eShop eShop eShop eShop eShop 37K M8 M12 thread for H1 mm 35 – 45 35 – 45 35 – 45 45 – 55 45 – 55 45 – 55 screwing in H2 mm 14 self-aligning pads No. 370055 - 370057 L1 mm 20 25 30 20 25 30 Fmax. kN 7.9 7.3 6.7 7.9 7.3 6.7 maximum torque Nm 20 Installation Type 1 2 3 4 5 6 7 8 9 example Clamping hook with collar 37 0071 eShop eShop eShop eShop eShop eShop – – – 37K M12 Clamping hook ground Dh7 Clamping hook ground 37 0073 – – – – – – eShop eShop eShop 37K M12 Clamping hook H1 mm 50 – 65 50 – 65 50 – 65 65 – 80 65 – 80 65 – 80 39 39 39 mounting H2 mm 27 29 29 27 29 29 27 29 29 L1 mm 40 50 60 40 50 60 40 50 60 Fmax. kN 13.5 12.6 11.7 13.5 12.6 11.7 22.6 18.5 15.2 Height cylinder maximum torque Nm 45 45 45 45 45 45 58.8 49 45.1 (on request) ⌀ Dh7 mm – – – – – – 25 25 25 Type 1 2 3 4 5 6 8 9 Clamping hook with collar 37 0072 eShop eShop eShop eShop eShop eShop – – 37K M16 Clamping hook ground 37 0074 – – – – – – eShop eShop 37K M16 H1 mm 50 – 65 50 – 65 50 – 65 65 – 80 65 – 80 65 – 80 75 75 H2 mm 36 L1 mm 40 50 60 40 50 60 50 60 Fmax. kN 13.4 12.4 12 13.4 12.4 12 38 33 maximum torque Nm 60 60 60 60 60 60 147 127.4 ⌀ Dh7 mm – – – – – – 32 32 Type 1 2 3 4 37 0075 Clamping hook, cylindrical eShop eShop eShop eShop 37K H1 mm 42 52 66 83 H2 mm 10 12 16 20 B mm 11 15 17 20 ⌀ D mm 16 20 25 32 ⌀ D1 mm 10 12 14 17 ⌀ D2 mm 11 15 18 20 ⌀ D3 mm 6.5 8.5 10.5 12.5 Fmax. kN 4.8 8.8 13.9 20.2 37 0075 Height cylinder for clamping hooks ​ DF7 Application: For guiding and lifting ground clamping hooks. L 37 M D 37 0083 ⌀D ⌀ DF7 Length L mm 80 100 M maximum torque Nm mm mm 37 0083 (eShop) (eShop) M12 40 25 49 37K 37K Clamping hook mounting 37 0084 (eShop) (eShop) M16 50 32 78.4 1224
