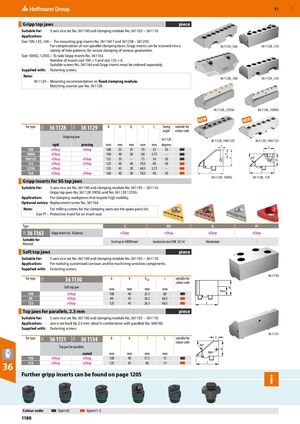

GBP 57 Gripp top jaws piece Suitable for: 5-axis vice set No. 361100 and clamping module No. 361105 − 361110. Application: Size 100; 125; 160 – For mounting grip inserts No. 361160 7 and 361238 – 361250. For compensation of non-parallel clamping faces. Gripp inserts can be screwed into a 36 1129_160 36 1128_125 variety of hole patterns, for secure clamping of various geometries. Size 100SG; 125SG – To take Gripp inserts No. 361163. Number of inserts size 100 = 5 and size 125 = 6. Suitable screws No. 361164 and Gripp inserts must be ordered separately. Supplied with: Fastening screws. Note: 36 1128_160 36 1129_125 36 1129 – Mounting recommendation on fixed clamping module. Matching counter jaw No. 361128. 36 1128_125SG 36 1128_100SG NEW NEW for type 36 1128 36 1129 b h h1 l l1 Swing suitable for 31O 31O angle colour code Gripp top jaw ​ ​ ​ ​ 36 1129 ​ 36 1128_100/125 36 1129_100/125 rigid pivoting mm mm mm mm mm degrees ​ l1 100 eShop eShop 100 35 35 70 33 30 ​ 100SG eShop – 100 40 20 60 5.75 – ​ 100/125 eShop eShop 125 35 – 73 34 30 ​ 40° h 125 eShop eShop 125 40 40 78.5 40 30 ​ 125SG eShop – 125 45 20 68.5 5.75 – ​ l 160 eShop eShop 160 40 40 78.5 40 30 ​ 36 1128_100SG 36 1128_125 Gripp inserts for SG top jaws ​ Suitable for: 5-axis vice set No. 361100 and clamping module No. 361105 − 361110. Gripp top jaws No. 361128 100SG and No. 361128 125SG. Application: For clamping workpieces that require high stability. Optional extras: Replacement screw No. 361164. Note: For milling cutters for the clamping seats see the spare parts list. Size PI – Protective insert for an insert seat. Type S HS A PI 36 1163 Gripp insert set, 10 pieces eShop eShop eShop eShop 33S Suitable for: Steel up to 980N/mm2 hardened steel HRC 50-54 Aluminium - Material Soft top jaws piece Suitable for: 5-axis vice set No. 361100 and clamping module No. 361105 − 361110. Application: For realising customised contours and for machining sensitive components. Supplied with: Fastening screws. 36 1130 for type 36 1130 b h hmin l suitable for 31O colour code Soft top jaw mm mm mm mm 100 eShop 100 40 25.5 60 80 eShop 80 45 26.5 68.5 125 eShop 125 45 26.5 68.5 Top jaws for parallels, 2.5 mm piece Suitable for: 5-axis vice set No. 361100 and clamping module No. 361105 − 361110. Application: Jaw is set back by 2.5 mm. Ideal in combination with parallels No. 366740. Supplied with: Fastening screws. 36 1131 l1 for type 36 1131 36 1134 b h l l1 suitable for 31O 31O colour code 40° Top jaw for parallels h coated mm mm mm mm ​ M6 100 eShop eShop 100 40 57.5 15 125 eShop eShop 125 45 66 15 l 36 Further gripp inserts can be found on page 1205 Colour code: Xpent0 Xpent1-2 1180
