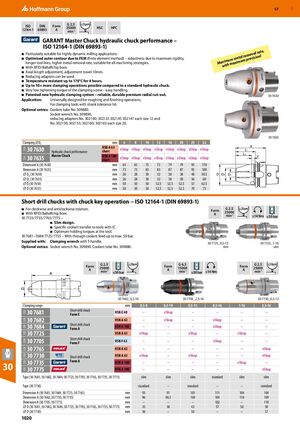

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1020
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
GARANT Master Chuck hydraulic chuck performance –
ISO 12164-1 (DIN 69893-1)
te,
- Particularly suitable for highly dynamic milling applications. val ra
- Optimised outer contour due to FEM (finite element method) – robustness due to maximum rigidity, ision!
um metal remoum prec longer tool lives, higher metal removal rate, suitable for all machining strategies. Maxim With RFID/Balluffchip bore. with maxim
- Axial length adjustment, adjustment travel 10mm.
- Reducing adapters can be used.
- Temperature resistant up to 170°C for 4 hours.
- Up to 10× more clamping operations possible compared to a standard hydraulic chuck.
- Very low tightening torque of the clamping screw – easy handling.
- Patented new hydraulic clamping system – reliable, durable premium radial run-out. 30 7630
Application: Universally designed for roughing and finishing operations. For clamping tools with shank tolerance h6.
Optional extras: Coolant tube No. 309880. Socket wrench No. 309890, reducing adapters No. 302140; 302135 302145 302147 each size 12 and No. 302150; 302155; 302160; 302165 each size 20.
30 7635
Clamping ⌀D mm 6 8 10 12 16 20 25 32
1 A 30 7630 HSK-A 63
short eShop eShop eShop eShop eShop eShop eShop eShop L
Hydraulic chuck performance
30 7635 Master Chuck HSK-A 100 L
eShop eShop eShop eShop eShop eShop eShop eShop V short
| Dimension A (30 7630) | mm | 65 | 65 | 75 | 75 | 79 | 79 | 95 | 110 |
| Dimension A (30 7635) | mm | 73 | 73 | 83 | 83 | 87 | 87 | 95 | 100 |
- D (30 7630) mm 26 28 30 32 38 38 48 58.5 D D D 2
- D (30 7635) mm 26 28 30 32 38 38 56 60 2
- D (30 7630) mm 50 50 50 52.5 52.5 52.5 57 62.5
- D (30 7635) mm 50 50 50 52.5 52.5 52.5 70 75
Short drill chucks with chuck key operation − ISO 12164-1 (DIN 69893-1)
- For clockwise and anticlockwise rotation. G 2.5 ≤20µm
Form 25000
- With RFID/Balluffchip bore. A
min-1 ≤14 Nm ≤50 bar
30 7725/7735/7765/7775 –
- Slim design.
- Specific coolant transfer to tools with IC.
- Optimum holding torques at the tool.
30 7681–7684/7725/7735 – With through coolant feed up to max. 50 bar. Supplied with: Clamping wrench with T-handle. 30 7725_0,5-13 30 7725_1-16
Optional extras: Socket wrench No. 309890. Coolant tube No. 309880. slim slim
| G 2.5 | ≤20µm | G 6.3 | G 2.5 | ≤30µm | |||
| Form | 25000 | Form | 15000 | Form | 25000 | ||
| A | min | A | min | A | min |
-1 ≤50 bar -1 ≤50 bar ≤14 Nm -1
30 7682_0,5-16 30 7765_2,5-16 30 7730_0,5-13
Clamping range mm 0,3-8 0,3-10 0,5-13 0,5-16 1-16 2,5-16
30 7681 Short drill chuck HSK-E 40
| Form E | – | eShop | – | – | – | – | ||
| 30 7682 | HSK-A 63 | – | eShop | – | eShop | – | – | |
| 30 7684 | Short drill chuck | HSK-A 100 | ||||||
| Form A | – | – | – | eShop | – | – | ||
| 30 7725 | HSK-A 63 | eShop | – | eShop | – | eShop | – | |
| 30 7705 | Short drill chuck | HSK-F 63 | ||||||
| Form F | – | – | – | eShop | – | – | ||
| 30 7765 | HSK-A 63 | – | – | – | – | – | eShop | |
| 30 7730 | HSK-A 63 | eShop | – | eShop | – | – | eShop |
Short drill chuck
| 30 | 30 7735 | Form A HSK-A 100 | – | – | – | – | eShop | – | |
| 30 7775 | HSK-A 100 | – | – | – | – | – | eShop | ||
| Type (30 7681, 30 7682, 30 7684, 30 7725, 30 7705, 30 7765, 30 7735, 30 7775) | slim | slim | slim | standard | slim | slim | |||
| Type (30 7730) | standard | – | standard | – | – | standard | |||
| Dimension A (30 7681, 30 7684, 30 7725, 30 7765) | mm | 93 | 91 | 101 | 111 | 104 | 104 | ||
| Dimension A (30 7682, 30 7730, 30 7735) | mm | 96 | 96.5 | 104 | 104 | 110 | 109 | ||
| Dimension A (30 7705, 30 7775) | mm | – | – | – | 102 | – | 110 |
- D (30 7681, 30 7682, 30 7684, 30 7725, 30 7705, 30 7765, 30 7735, 30 7775) mm 35 38 43 57 50 50
- D (30 7730) mm 36 – 50 – – 57
