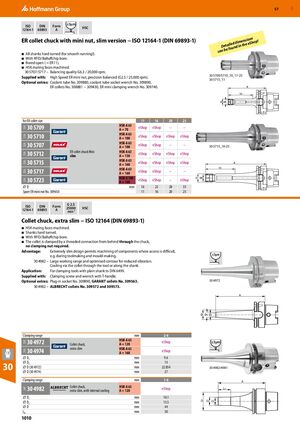

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1010

GBP 57 ≤3µm ISO DIN Form HSC 12164-1 69893 A s ​ER collet chuck with mini nut, slim version − ISO 12164-1 (DIN 69893-1) nsion i l e d dime he eShop! Deta ound in t ef can b ■ All shanks hard turned (for smooth running!). ■ With RFID/Balluffchip bore. ■ Bored open ( = ER11). ■ HSK mating faces machined. 30 5707/5717 – Balancing quality G6.3 / 20,000 rpm. Supplied with: High Speed ER mini nut, precision balanced (G2.5 / 25,000 rpm). 30 5709/5710_10_11-25 30 5715_11 Optional extras: Coolant tube No. 309880, coolant tube socket wrench No. 309890, ER collets No. 308881 − 309430, ER mini clamping wrench No. 309740. for ER collet size 11 16 20 25 HSK-A 63 30 5709 eShop eShop – – 31A A = 70 HSK-A 63 30 5710 eShop eShop eShop eShop 31A A = 100 HSK-A 63 30 5707 eShop eShop – – 32A A = 100 30 5715_16-25 ER collet chuck Mini HSK-A 63 30 5712 eShop eShop eShop eShop 31A slim A = 130 HSK-A 63 30 5715 eShop eShop eShop eShop 31A A = 160 HSK-A 63 30 5717 eShop eShop – – 32A A = 160 HSK-A 100 30 5723 eShop eShop – eShop 31A A = 160 ⌀ D mm 16 22 28 35 Spare ER mini nut No. 309650 11 16 20 25 ISO DIN Form G 2.5 12164-1 69893 A 25000 HSC min-1 ​Collet chuck, extra slim − ISO 12164 (DIN 69893-1) ■ HSK mating faces machined. ■ Shanks hard turned. ■ With RFID/Balluffchip bore. ■ The collet is clamped by a threaded connection from behind through the chuck, no clamping nut required. Advantage: Extremely slim design permits machining of components where access is difficult, e.g. during toolmaking and mould-making. ≤5µm 30 4982 – Large working range and optimised contour for reduced vibration. Cooling via the collet through the tool or along the shank. Application: For clamping tools with plain shank to DIN 6499. Supplied with: Clamping screw and wrench with T-handle. Optional extras: Plug-in socket No. 309890, GARANT collets No. 309563. 30 4972 30 4982 – ALBRECHT collets No. 309572 and 309573. A Clamping range mm 2-6 HSK-A 63 30 4972 eShop ≤3µm 31A Collet chuck, A = 120 extra slim HSK-A 63 30 4974 eShop 31A A = 160 ⌀ D1 mm 9.6 ⌀ D2 mm 13 30 ⌀ D (30 4972) ⌀ D (30 4974) mm mm 22.854 27 30 4982/4981 Clamping range mm 1-6 A Collet chuck, HSK-A 63 30 4982 eShop 34F Ln extra slim, with internal cooling A = 120 ⌀ D1 mm 10.1 ⌀ D2 mm 13.5 D D 2 D1 ⌀ D mm 44 LN mm 30 1010
