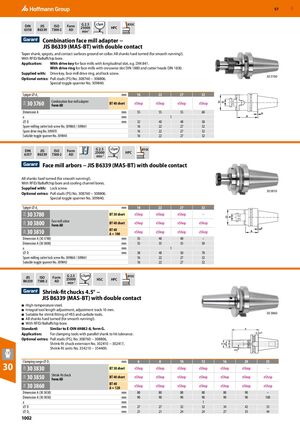

GBP 57 G 2.5 ≤5µm BT-DC DIN JIS ISO Form 25000 HPC 6358 B6339 7388-2 AD min-1 Combination face mill adapter − JIS B6339 (MAS-BT) with double contact Taper shank, spigots, and contact surfaces ground on collar. All shanks hard turned (for smooth running!). With RFID/Balluffchip bore. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. 30 3760 Optional extras: Pull studs (PS) No. 308760 − 308806. Special toggle spanner No. 309840. Spigot ⌀ d1 mm 16 22 27 32 Combination face mill adapter 30 3760 BT 40 short eShop eShop eShop eShop 31A Form AD Dimension A mm 55 55 55 60 a mm 1 ⌀ D mm 32 40 48 58 Spare milling cutter lock screw No. 309860 / 309861 16 22 27 32 Spare drive ring No. 309870 16 22 27 32 Suitable toggle spanner No. 309840 16 22 27 32 G 2.5 ≤5µm BT-DC DIN JIS ISO Form 25000 HPC 6357 B6339 7388-2 AD min-1 Face mill arbors − JIS B6339 (MAS-BT) with double contact All shanks hard turned (for smooth running!). With RFID/Balluffchip bore and cooling channel bores. Supplied with: Lock screw. 30 3810 Optional extras: Pull studs (PS) No. 308760 − 308806. Special toggle spanner No. 309840. Spigot ⌀ d1 mm 16 22 27 32 30 3780 BT 30 short eShop eShop eShop – 31A Face mill arbor 30 3800 BT 40 short eShop eShop eShop eShop 31A Form AD BT 40 30 3810 eShop eShop eShop eShop 31A A = 100 Dimension A (30 3780) mm 35 40 40 – Dimension A (30 3800) mm 35 35 35 50 a mm 1 ⌀ D mm 38 48 50 78 Spare milling cutter lock screw No. 309860 / 309861 16 22 27 32 Suitable toggle spanner No. 309840 16 22 27 32 G 2.5 ≤3µm BT-DC JIS ISO Form 25000 HSC HPC B6339 7388-2 AD min-1 Shrink-fit chucks 4.5° − JIS B6339 (MAS-BT) with double contact ■ High-temperature steel. ■ Integral tool length adjustment, adjustment track 10 mm. ■ Suitable for shrink fitting of HSS and carbide tools. 30 3860 ■ All shanks hard turned (for smooth running!). ■ With RFID/Balluffchip bore. Standard: Similar to E-DIN 69882-8, form G. a Application: For clamping tools with parallel shank to h6 tolerance. Optional extras: Pull studs (PS), No. 308760 − 308806, Shrink-fit chuck extension No. 302410 − 302417, Shrink-fit units No. 354210 − 354400. Clamping range ⌀ D1 mm 6 8 10 12 16 20 25 30 30 3830 BT 30 short eShop eShop eShop eShop eShop eShop – 31A Shrink-fit chuck 30 3850 BT 40 short eShop eShop eShop eShop eShop eShop eShop 31A Form AD BT 40 30 3860 eShop eShop eShop eShop eShop eShop eShop 31A A = 120 Dimension A (30 3830) mm 80 80 80 80 80 90 – Dimension A (30 3850) mm 90 90 90 90 90 90 100 a mm 1 ⌀ D mm 27 27 32 32 34 42 53 ⌀ D2 mm 21 21 24 24 27 33 44 1002
