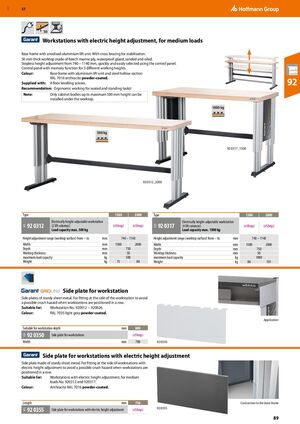

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 89

GBP 57 25 50 Workstations with electric height adjustment, for medium loads Base frame with anodised aluminium lift unit. With cross bracing for stabilisation. 50 mm thick worktop made of beech marine ply, waterproof glued, sanded and oiled. Stepless height adjustment from 740 – 1140 mm, quickly and easily selected using the control panel. Control panel with memory function for 3 different working heights. Colour: Base frame with aluminium lift unit and steel hollow section RAL 7016 anthracite powder-coated. Supplied with: 4 floor levelling screws. Recommendation: Ergonomic working for seated and standing tasks! 92 Note: Only cabinet bodies up to maximum 500 mm height can be installed under the worktop. 1000 kg 500 kg ​ 92 0317_1500 ​ 92 0312_2000 Type 1500 2000 Type 1500 2000 Electrically height-adjustable workstation Electrically height-adjustable workstation 92 0312 (2 lift columns) (eShop) (eShop) 92 0317 (4 lift columns) (eShop) (eShop) 91S 91S Load capacity max. 500 kg Load capacity max. 1000 kg Height adjustment range (worktop surface) from − to mm 740 – 1140 Height adjustment range (worktop surface) from − to mm 740 – 1140 Width mm 1500 2000 Width mm 1500 2000 Depth mm 750 Depth mm 750 Worktop thickness mm 50 Worktop thickness mm 50 maximum load capacity kg 500 maximum load capacity kg 1000 Weight kg 75 88 Weight kg 86 101 Side plate for workstation Side plates of sturdy sheet metal. For fitting at the side of the workstation to avoid a possible crush hazard when workstations are positioned in a row. Suitable for: Workstation No. 920012 − 920026. Colour: RAL 7035 light grey powder coated. Application Suitable for workstation depth mm 800 92 0350 Side plate for workstations (eShop) 91P Width mm 700 92 0350 ​ Side plate for workstations with electric height adjustment Side plate made of sturdy sheet metal. For fitting at the side of workstations with electric height adjustment to avoid a possible crush hazard when workstations are positioned in a row. Suitable for: Workstations with electric height adjustment, for medium loads No. 920312 and 920317. Colour: Anthracite RAL 7016 powder-coated. Length mm 750 Connection to the base frame 92 0355 Side plate for workstations with electric height adjustment (eShop) 92 0355 91S 89
