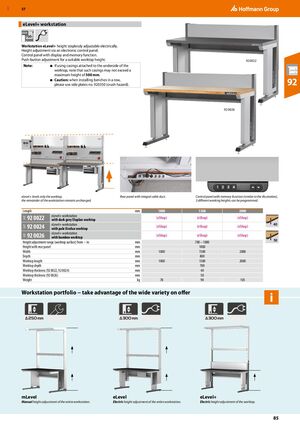

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 85

GBP 57 eLevel+ workstation ​ 700- 1000 Workstation eLevel+ height steplessly adjustable electrically. Height adjustment via an electronic control panel. Control panel with display and memory function. Push-button adjustment for a suitable worktop height. 92 0022 Note: ■ If using casings attached to the underside of the worktop, note that such casings may not exceed a maximum height of 500 mm. ■ Caution: when installing benches in a row, please use side plates no. 920350 (crush hazard). 92 ​ 92 0026 eLevel+ levels only the worktop, Rear panel with integral cable duct. Control panel with memory function (similar to the illustration), the remainder of the workstation remains unchanged. 3 different working heights can be programmed. Length mm 1000 1500 2000 eLevel+ workstation 92 0022 (eShop) (eShop) (eShop) 91P with dark grey Eluplan worktop eLevel+ workstation 40 92 0024 (eShop) (eShop) (eShop) 91P with pale Eterlux worktop eLevel+ workstation 92 0026 (eShop) (eShop) (eShop) 91P with bamboo worktop Height adjustment range (worktop surface) from − to mm 700 – 1000 50 Height with rear panel mm 1000 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness (92 0022, 92 0024) mm 40 Worktop thickness (92 0026) mm 50 Weight kg 78 90 105 Workstation portfolio − take advantage of the wide variety on offer mLevel eLevel eLevel+ Manual height adjustment of the entire workstation. Electric height adjustment of the entire workstation. Electric height adjustment of the worktop. 85
