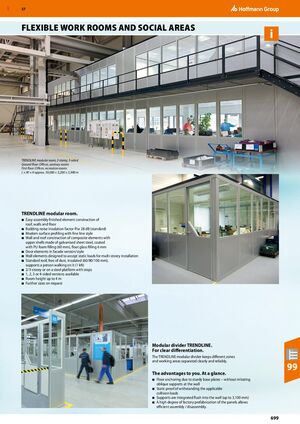

GBP 57 FLEXIBLE WORK ROOMS AND SOCIAL AREAS TRENDLINE modular room, 2-storey, 3-sided. Ground floor: Offices, sanitary rooms First floor: Offices, recreation rooms L × W × H approx. 39,000 × 5,200 × 5,990 m TRENDLINE modular room. ■ Easy-assembly finished element construction of roof, walls and floor ■ Building noise insulation factor R‘w 28 dB (standard) ■ Modern surface profiling with fine line style ■ Wall and roof construction of composite elements with upper shells made of galvanised sheet steel, coated with PU foam filling (60 mm), float glass filling 6 mm ■ Door elements in facade version/style ■ Wall elements designed to accept static loads for multi-storey installation ■ Standard roof, free of dust, insulated (60/80/100 mm), supports a person walking on it (1 kN) ■ 2/3-storey or on a steel platform with steps ■ 1, 2, 3 or 4-sided versions available ■ Room height up to 4 m ■ Further sizes on request Modular divider TRENDLINE. For clear differentiation. The TRENDLINE modular divider keeps different zones and working areas separated clearly and reliably. The advantages to you. At a glance. 99 ■ Floor anchoring due to sturdy base plates – without irritating oblique supports at the wall ■ Static proof of withstanding the applicable collision loads ■ Supports are integrated flush into the wall (up to 3,100 mm) ■ A high degree of factory prefabrication of the panels allows efficient assembly / disassembly. 699
