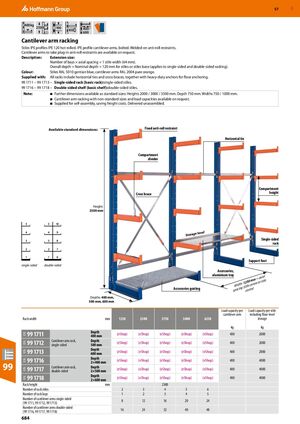

GBP 57 400 kg 2500 100 400- 600 ​Cantilever arm racking Stiles IPE profiles IPE 120 hot-rolled. IPE profile cantilever arms, bolted. Welded-on anti-roll restraints. Cantilever arms to take plug-in anti-roll restraints are available on request. Description: Extension size: Number of bays × axial spacing + 1 stile width (64 mm). Overall depth = Nominal depth + 120 mm for stiles or stiles base (applies to single-sided and double-sided racking). Colour: Stiles RAL 5010 gentian blue, cantilever arms RAL 2004 pure orange. Supplied with: All racks include horizontal ties and cross braces, together with heavy-duty anchors for floor anchoring. 99 1711 – 99 1713 – Single-sided rack (basic rack):single-sided stiles. 99 1716 – 99 1718 – Double-sided shelf (basic shelf):double-sided stiles. Note: ■ Further dimensions available as standard sizes: Heights 2000 / 3000 / 3500 mm. Depth 750 mm. Widths 750 / 1000 mm. ■ Cantilever arm racking with non-standard sizes and load capacities available on request. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Available standard dimensions: Fixed anti-roll restraint Horizontal tie Compartment divider Compartment Cross brace height Height: 2500 mm level Storage Single-sided rack Support foot single-sided double-sided Accessories, aluminium tray l = axia 2 5 0 mm to stile h: 1 tre Widt (stile cen Accessories grating g ) spacin centre Depths: 400 mm, 500 mm, 600 mm Load capacity per Load capacity per stile cantilever arm including floor-level Rack width mm 1250 2500 3750 5000 6250 storage kg kg Depth 99 1711 (eShop) (eShop) (eShop) (eShop) (eShop) 400 2000 97K 400 mm Cantilever arm rack, Depth 99 1712 (eShop) (eShop) (eShop) (eShop) (eShop) 400 2000 97K single-sided 500 mm Depth 99 1713 (eShop) (eShop) (eShop) (eShop) (eShop) 400 2000 97K 600 mm Depth 99 1716 (eShop) (eShop) (eShop) (eShop) (eShop) 400 4000 97K 2×400 mm 99 99 1717 Cantilever arm rack, Depth (eShop) (eShop) (eShop) (eShop) (eShop) 400 4000 97K double-sided 2×500 mm Depth 99 1718 (eShop) (eShop) (eShop) (eShop) (eShop) 400 4000 97K 2×600 mm Rack height mm 2500 ​ ​ Number of rack stiles 2 3 4 5 6 ​ ​ Number of rack bays 1 2 3 4 5 ​ ​ Number of cantilever arms single-sided 8 12 16 20 24 ​ ​ (99 1711, 99 1712, 99 1713) Number of cantilever arms double-sided 16 24 32 40 48 ​ ​ (99 1716, 99 1717, 99 1718) 684
