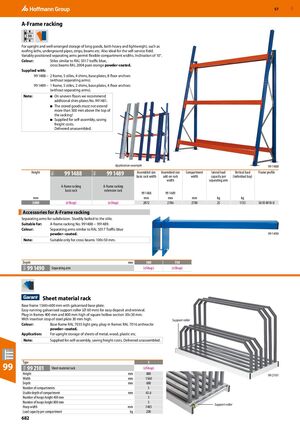

GBP 57 ​A-Frame racking 50 For upright and well-arranged storage of long goods, both heavy and lightweight, such as roofing laths, underground pipes, strips, beams etc. Also ideal for the self-service field. Variably positioned separating arms permit flexible compartment widths. Inclination of 10°. Colour: Stiles similar to RAL 5017 traffic blue, cross beams RAL 2004 pure orange powder-coated. Supplied with: 99 1488 – 2 frame, 5 stiles, 4 shims, base plates, 8 floor anchors (without separating arms). 99 1489 – 1 frame, 5 stiles, 2 shims, base plates, 4 floor anchors (without separating arms). Note: ■ On uneven floors we recommend additional shim plates No. 991481. ■ The stored goods must not extend more than 500 mm above the top of the racking! ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Application example 99 1488 Height 99 1488 99 1489 Assembled size Assembled size Compartment lateral load Vertical load Frame profile 96O 96O basic rack width add-on rack width capacity per (individual bay) width separating arm A-frame racking A-frame racking basic rack extension rack 99 1488 99 1489 ​ ​ ​ mm mm mm mm kg kg ​ 3000 (eShop) (eShop) 2872 2786 2700 25 1135 S610-M18-U Accessories for A-Frame racking ​ Separating arms for subdivision. Sturdily bolted to the stile. Suitable for: A-frame racking No. 991488 − 991489. Colour: Separating arms similar to RAL 5017 Traffic blue powder−coated. 99 1490 Note: Suitable only for cross beams 100×50 mm. Depth mm 500 750 99 1490 96O Separating arm (eShop) (eShop) Sheet material rack Base frame 1560×600 mm with galvanised base plate. Easy-running galvanised support roller (⌀ 60 mm) for easy deposit and retrieval. Plug-in frames 400 mm and 800 mm high of square hollow section 30×30 mm. With insertion stop of steel plate 30 mm high. Support roller Colour: Base frame RAL 7035 light grey, plug-in frames RAL 7016 anthracite powder−coated. Application: For upright storage of sheets of metal, wood, plastic etc. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. Type 5 99 99 2101 91W Sheet material rack (eShop) Height mm 880 99 2101 Width mm 1560 Depth mm 600 Number of compartments 5 Usable depth of compartment mm 65.6 Number of hoops height 400 mm 3 Number of hoops height 800 mm 3 Support roller Hoop width mm 1485 Load capacity per compartment kg 200 682
