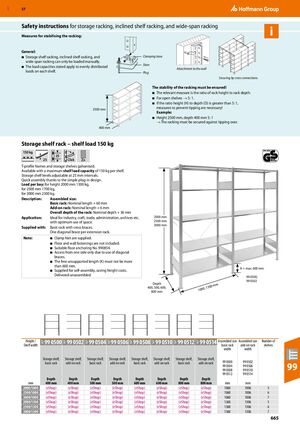

GBP 57 Safety instructions for storage racking, inclined shelf racking, and wide-span racking Measures for stabilising the racking: General: ■ Storage shelf racking, inclined shelf racking, and Clamping base wide-span racking can only be loaded manually. Shim ■ The load capacities stated apply to evenly distributed Attachment to the wall loads on each shelf. Plug Securing by cross connections. The stability of the racking must be ensured! ■ The relevant measure is the ratio of rack height to rack depth. ■ For open shelves → 5: 1. ■ If the ratio height (H) to depth (D) is greater than 5: 1, 2500 mm measures to prevent tipping are necessary! Example: ■ Height 2500 mm, depth 400 mm 5: 1 → The racking must be secured against tipping over. 400 mm ​Storage shelf rack – shelf load 150 kg 150 kg 25 25 Click Zn T-profile frames and storage shelves galvanised. Available with a maximum shelf load capacity of 150 kg per shelf. Storage shelf levels adjustable at 25 mm intervals. Quick assembly thanks to the simple plug-in design. Load per bay: for height 2000 mm 1300 kg, for 2500 mm 1700 kg, for 3000 mm 2300 kg. Description: Assembled size: Basic rack: Nominal length + 60 mm Add-on rack: Nominal length + 6 mm Overall depth of the rack: Nominal depth + 36 mm Application: Ideal for industry, craft, trade, administration, archives etc. 2000 mm with optimum use of space. 2500 mm 3000 mm Supplied with: Basic rack with cross braces. One diagonal brace per extension rack. Note: ■ Clamp feet are supplied. ■ Floor and wall fastenings are not included. ■ Suitable floor anchoring No. 990854. ■ Access from one side only due to use of diagonal braces. ■ The free unsupported length (K) must not be more than 600 mm. K = max. 600 mm ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. 99 0500, 99 0502 Depth 0 mm 400, 500, 600, , 130 800 mm 1000 Height / 99 0500 99 0502 99 0504 99 0506 99 0508 99 0510 99 0512 99 0514 Assembled size Assembled size Number of 96P 96P 96P 96P 96P 96P 96P 96P Shelf width basic rack add-on rack shelves width width Storage shelf, Storage shelf, Storage shelf, Storage shelf, Storage shelf, Storage shelf, Storage shelf, Storage shelf, basic rack add-on rack basic rack add-on rack basic rack add-on rack basic rack add-on rack 99 0500 99 0502 ​ 99 0504 99 0508 99 0506 99 0510 99 99 0512 99 0514 Depth Depth Depth Depth Depth Depth Depth Depth mm 400 mm 400 mm 500 mm 500 mm 600 mm 600 mm 800 mm 800 mm mm mm ​ 2000/1000 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1060 1006 5 2500/1000 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1060 1006 6 3000/1000 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1060 1006 7 2000/1300 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1360 1306 5 2500/1300 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1360 1306 6 3000/1300 (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 1360 1306 7 665
