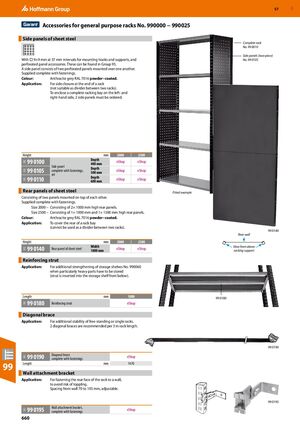

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 660

GBP 57 ​ Accessories for general purpose racks No. 990000 − 990025 Side panels of sheet steel Complete rack No. 99 0010 Side panels (two-piece) With □ 9×9 mm at 37 mm intervals for mounting hooks and supports, and No. 99 0105 perforated panel accessories. These can be found in Group 95. A side panel consists of two perforated panels mounted over one another. Supplied complete with fastenings. Colour: Anthracite grey RAL 7016 powder−coated. Application: For side closure at the end of a rack (not suitable as divider between two racks). To enclose a complete racking bay on the left- and right-hand side, 2 side panels must be ordered. Height mm 2000 2500 Depth 99 0100 eShop eShop 91I 400 mm Side panel Depth 99 0105 complete with fastenings, eShop eShop 91I 500 mm set Depth 99 0110 eShop eShop 91I 600 mm Rear panels of sheet steel Fitted example Consisting of two panels mounted on top of each other. Supplied complete with fastenings. Size 2000 – Consisting of 2× 1000 mm high rear panels. Size 2500 – Consisting of 1× 1000 mm and 1× 1500 mm high rear panels. Colour: Anthracite grey RAL 7016 powder−coated. Application: To cover the rear of a rack bay (cannot be used as a divider between two racks). 99 0140​ Rear wall Height mm 2000 2500 Width View from above 99 0140 Rear panel of sheet steel eShop eShop 91I 1000 mm racking support Reinforcing strut Application: For additional strengthening of storage shelves No. 990060 when particularly heavy parts have to be stored (strut is inserted into the storage shelf from below). Length mm 1000 99 0180​ 99 0180 Reinforcing strut eShop 91I Diagonal brace Application: For additional stability of free-standing or single racks. 2 diagonal braces are recommended per 3 m rack length. 99 0190​ Diagonal brace 99 0190 eShop 91I complete with fastenings 99 Length mm 1470 Wall attachment bracket Application: For fastening the rear face of the rack to a wall, to avoid risk of toppling. Spacing from wall 70 to 105 mm, adjustable. 99 0195​ Wall attachment bracket, 99 0195 eShop 91I complete with fastenings 660
