Производственная мебель и системы хранения Hoffmann Group 2026 - страница 658

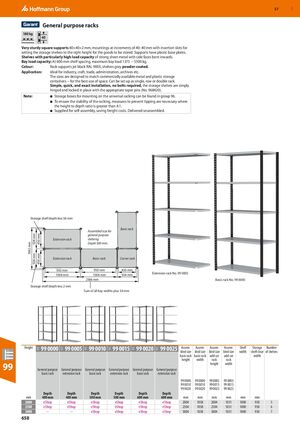

GBP 57 ​ General purpose racks 180 kg 40 Very sturdy square supports 40×40×2 mm, mountings at increments of 40: 40 mm with insertion slots for setting the storage shelves to the right height for the goods to be stored. Supports have plastic base plates. Shelves with particularly high load capacity of strong sheet metal with side faces bent inwards. Bay load capacity: At 600 mm shelf spacing, maximum bay load 1375 − 5500 kg. Colour: Rack supports jet black RAL 9005, shelves grey powder-coated. Application: Ideal for industry, craft, trade, administration, archives etc. The sizes are designed to match commercially available metal and plastic storage containers − for the best use of space. Can be set up as single, row or double rack. Simple, quick, and exact installation, no bolts required, the storage shelves are simply hinged and locked in place with the appropriate taper pins (No. 968420). Note: ■ Storage boxes for mounting on the universal racking can be found in group 96. ■ To ensure the stability of the racking, measures to prevent tipping are necessary where the height to depth ratio is greater than 4:1. ■ Supplied for self-assembly, saving freight costs. Delivered unassembled. Storage shelf depth less 56 mm Basic rack Assembled size for general purpose 504 mm 450 mm Extension rack shelving Depth 500 mm. 1062 mm 504 mm 450 mm Extension rack Basic rack Corner rack 950 mm 950 mm 450 mm 1004 mm 1004 mm 504 mm Extension rack No. 99 0005 2566 mm Basic rack No. 99 0000 Storage shelf depth less 2 mm Sum of all bay widths plus 54 mm Height 99 0000 99 0005 99 0010 99 0015 99 0020 99 0025 bled Assem- Assem- Assem- Assem- Shelf Storage Number 91I 91I 91I 91I 91I 91I size bled size bled size bled size width shelf clear of shelves basic rack basic rack add-on add-on width height width rack rack 99 height width General purpose General purpose General purpose General purpose General purpose General purpose basic rack extension rack basic rack extension rack basic rack extension rack 99 0000 99 0000 99 0005 99 0005 ​ ​ ​ 99 0010 99 0010 99 0015 99 0015 99 0020 99 0020 99 0025 99 0025 Depth Depth Depth Depth Depth Depth mm 400 mm 400 mm 500 mm 500 mm 600 mm 600 mm mm mm mm mm mm mm ​ 2000 eShop eShop eShop eShop eShop eShop 2004 1058 2004 1031 1000 950 5 2500 eShop eShop eShop eShop eShop eShop 2504 1058 2504 1031 1000 950 6 3000 – – eShop eShop eShop eShop 3004 1058 3004 1031 1000 950 7 658
