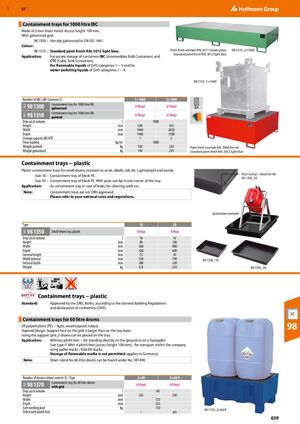

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 639

GBP 57 Containment trays for 1000 litre IBC ​ Made of 3 mm sheet metal. Access height 100 mm. With galvanised grid. 98 1300 – Hot-dip galvanised to EN ISO 1461. Colour: 98 1310 – Standard paint finish RAL 5012 light blue. Paint finish example RAL 6011 reseda green. 98 1310_2×1000 Standard paint finish RAL 5012 light blue. Application: For secure storage of containers IBC (Intermediate Bulk Containers) and CTC (Cubic Tank Containers). For flammable liquids of GHS categories 1 − 3 and for water-polluting liquids of GHS categories 1 − 4. 98 1310_1×1000 Number of IBC×IBC Contents (l) 1×1000 2×1000 Containment tray for 1000 litre IBC 98 1300 96U (eShop) (eShop) Zn galvanised Containment tray for 1000 litre IBC 98 1310 96U (eShop) (eShop) painted Drip catch volume l 1000 Height mm 630 435 Width mm 1460 2650 Depth mm 1460 1300 Storage capacity IBC/KTC 1 2 Floor loading kg/m2 1000 Weight painted kg 180 226 Paint finish example RAL 3000 fire red. Weight galvanised kg 194 239 Standard paint finish RAL 5012 light blue. ​Containment trays − plastic Plastic containment trays for small drums, resistant to acids, alkalis, oils etc. Lightweight and sturdy. Size 18 – Containment tray of black PE. Pour-out lip – detail for No. 98 1350_50. Size 50 – Containment tray of black PE. With pour-out lip in one corner of the tray. Application: As containment tray in case of leaks, for cleaning work etc. Note: Containment trays are not DIBt approved. Please refer to your national rules and regulations. Application example Type ​ 18 50 98 1350 Small drum tray, plastic eShop eShop 96V Drip catch volume l 18 42 Height mm 80 100 Width mm 560 800 Depth mm 420 600 Internal height mm 75 95 Width internal mm 530 790 98 1350_18 Internal depth mm 380 520 Weight kg 0.8 2.05 98 1350_50 Containment trays − plastic Standard: Approved by the DIBt, Berlin, according to the General Building Regulations and declaration of conformity (ÜHP). Containment trays for 60 litre drums ​ Of polyethylene (PE) − light, weatherproof, robust. Tapered design: Support face on the grid is larger than on the tray base. 98 Using the support grid, 2 drums can be placed on the tray. Application: Without plinth feet − for standing directly on the ground or on a Europallet. Size type F: With 4 plinth feet (access height 100 mm) - for transport within the company using pallet trucks / fork lift trucks. Storage of flammable media is not permitted (applies to Germany). Note: Drum stand for 60-litre drums can be found under No. 981490. Number of drums×drum content (l) / Type 2×60 2×60/F Containment tray for 60 litre drums 98 1370 (eShop) (eShop) 96V with grid Drip catch volume l 60 Height mm 235 330 Width mm 725 Depth mm 525 Safe working load kg 150 98 1370_2×60/F Fitted with plinth feet – yes 639
