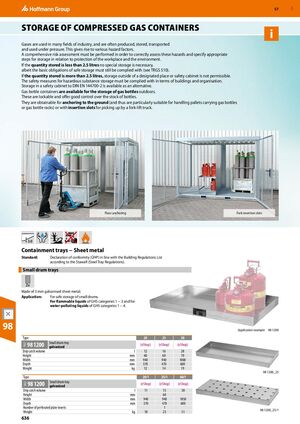

GBP 57 STORAGE OF COMPRESSED GAS CONTAINERS Gases are used in many fields of industry, and are often produced, stored, transported and used under pressure. This gives rise to various hazard factors. A comprehensive risk assessment must be performed in order to correctly assess these hazards and specify appropriate steps for storage in relation to protection of the workplace and the environment. If the quantity stored is less than 2.5 litres no special storage is necessary, albeit the basic obligations of safe storage must still be complied with (see TRGS 510). If the quantity stored is more than 2.5 litres, storage outside of a designated place or safety cabinet is not permissible. The safety measures for hazardous substance storage must be complied with in terms of buildings and organisation. Storage in a safety cabinet to DIN EN 144700-2 is available as an alternative. Gas bottle containers are available for the storage of gas bottles outdoors. These are lockable and offer good control over the stock of bottles. They are obtainable for anchoring to the ground (and thus are particularly suitable for handling pallets carrying gas bottles or gas bottle racks) or with insertion slots for picking up by a fork-lift truck. Floor anchoring Fork insertion slots 3.0 ​Containment trays − Sheet metal Standard: Declaration of conformity (ÜHP) in line with the Building Regulations List according to the StawaR (Steel Tray Regulations). Small drum trays ​ Zn Made of 3 mm galvanised sheet metal. Application: For safe storage of small drums. For flammable liquids of GHS categories 1 − 3 and for water-polluting liquids of GHS categories 1 − 4. 98 Application example 98 1200 Type 20 25 30 Small drum tray 98 1200 96U (eShop) (eShop) (eShop) galvanized Drip catch volume l 12 16 28 Height mm 60 60 70 Width mm 940 940 1000 Depth mm 370 470 600 Weight kg 12 14 19 98 1200_25 Type 20/1 25/1 60/1 Small drum tray 98 1200 96U (eShop) (eShop) (eShop) galvanized Drip catch volume l 11 15 38 Height mm 60 Width mm 940 940 1850 Depth mm 370 470 600 Number of perforated plate inserts 1 98 1200_25/1 Weight kg 18 23 51 636
