Производственная мебель и системы хранения Hoffmann Group 2026 - страница 628

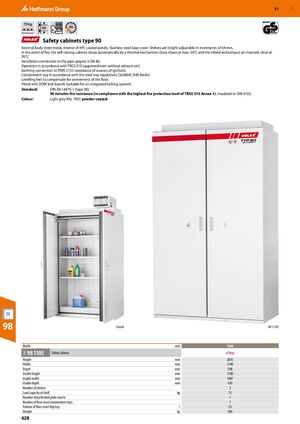

GBP 57 75 kg 64 90 Safety cabinets type 90 External body sheet metal, interior of HPL coated panels. Stainless steel base cover. Shelves are height-adjustable in increments of 64 mm. In the event of fire, the self-closing cabinet closes automatically by a thermal mechanism: Door closes at max. 50°C and the infeed and exhaust air channels close at 70°C. Ventilation connection to the pipe spigots is DN 80. Operation in accordance with TRGS 510 (approved even without exhaust air!). Earthing connection to TRBS 2153 (avoidance of sources of ignition). Containment tray in accordance with the steel tray regulations (StaWaR, DiBt Berlin) Levelling feet to compensate for unevenness of the floor. Fitted with DOM lock barrels (suitable for an integrated locking system). Standard: DIN EN 14470-1 (type 90). 90 minutes fire resistance (in compliance with the highest fire protection level of TRGS 510 Annex 1). Insulated to DIN 4102. Colour: Light grey RAL 7035 powder-coated. 98 Detail 98 1105 Width mm 1200 98 1105 96G Safety cabinet eShop Height mm 2035 Width mm 1190 Depth mm 598 Usable height mm 1700 Usable width mm 1087 Usable depth mm 430 Number of shelves 3 Load capacity of shelf kg 75 Number of perforated plate inserts 1 Number of floor-level containment trays 1 Volume of floor-level drip tray l 33 Weight kg 505 628
