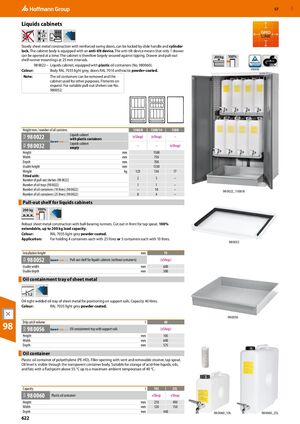

GBP 57 ​Liquids cabinets 25 Sturdy sheet metal construction with reinforced swing doors, can be locked by slide handle and cylinder lock. The cabinet body is equipped with an anti-tilt device. The anti-tilt device means that only 1 drawer can be opened at a time. The cabinet is therefore largely secured against tipping. Drawer and pull-out 200 kg 100% shelf runner mountings at 25 mm intervals. 98 0022 – Liquids cabinet, equipped with plastic oil containers (No. 980060). Colour: Body RAL 7035 light grey, doors RAL 7016 anthracite powder-coated. Note: The oil containers can be removed and the cabinet used for other purposes. Fitments on request: For suitable pull-out shelves see No. 980052. Height mm / number of oil canisters 1500/8 1500/14 1500 Liquids cabinet 98 0022 9GK (eShop) (eShop) – with plastic containers Liquids cabinet 98 0032 9GK – – (eShop) empty Height mm 1500 Width mm 750 Depth mm 700 Usable height mm 1350 Weight kg 123 136 77 Fitted with: 2 3 – Number of pull-out shelves (98 0022) Number of oil trays (98 0022) 1 1 – Number of oil containers (10 litres) (98 0022) – 10 – 98 0022_1500/8 Number of oil containers (25 litres) (98 0022) 8 4 – Pull-out shelf for liquids cabinets ​ 200 kg 100% Robust sheet metal construction with ball-bearing runners. Cut out in front for tap spout. 100% extendable, up to 200 kg load capacity. Colour: RAL 7035 light grey powder coated. Application: For holding 4 containers each with 25 litres or 5 containers each with 10 litres. 98 0052 Installation height mm 75 98 0052 9GK Pull-out shelf for liquids cabinets (without containers) (eShop) Usable width mm 600 Usable depth mm 500 Oil containment tray of sheet metal ​ 1.2 Oil-tight welded oil tray of sheet metal for positioning on support rails. Capacity 40 litres. Colour: RAL 7035 light grey powder coated. 98 0056 Drip catch volume l 40 98 98 0056 9GK Oil containment tray with support rails (eShop) Height mm 105 Width mm 690 Depth mm 575 Oil container ​ Plastic oil container of polyethylene (PE-HD). Filler opening with vent and removable strainer, tap spout. Oil level is visible through the transparent container body. Suitable for storage of acid-free liquids, oils, and fats with a flashpoint above 55 °C up to a maximum ambient temperature of 40 °C. Capacity l 10L 25L 98 0060 Plastic oil container eShop eShop 91H Height mm 270 490 Width mm 120 150 Depth mm 440 98 0060_10L 98 0060_25L 622
