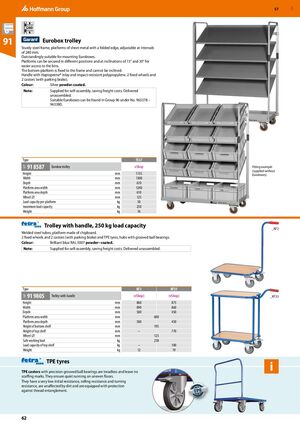

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 62

GBP 57 280 91 Eurobox trolley Sturdy steel frame, platforms of sheet metal with a folded edge, adjustable at intervals of 280 mm. Outstandingly suitable for mounting Euroboxes. Platforms can be secured in different positions and at inclinations of 15° and 30° for easier access to the bins. The bottom platform is fixed to the frame and cannot be inclined. Handle with Haptoprene® inlay and impact-resistant polypropylene. 2 fixed wheels and 2 castors (with parking brake). Colour: Silver powder-coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. Suitable Euroboxes can be found in Group 96 under No. 963378 – 963380. Type TE37 91 8587 Eurobox trolley eShop 91T Fitting example (supplied without Height mm 1735 Euroboxes). Width mm 1300 Depth mm 670 Platform area width mm 1240 Platform area depth mm 610 Wheel ⌀ mm 125 Load capacity per platform kg 50 maximum load capacity kg 250 Weight kg 76 ​ Trolley with handle, 250 kg load capacity _KF2 Welded steel tubes, platform made of chipboard. 2 fixed wheels and 2 castors (with parking brake) and TPE tyres, hubs with grooved ball bearings. Colour: Brilliant blue RAL 5007 powder−coated. Note: Supplied for self-assembly, saving freight costs. Delivered unassembled. Type KF2 KF33 91 9805 Trolley with handle (eShop) (eShop) 96F _KF33 Height mm 860 875 Width mm 890 860 Depth mm 500 450 Platform area width mm 600 Platform area depth mm 500 450 Height of bottom shelf mm 195 Height of top shelf mm – 770 Wheel ⌀ mm 125 Safe working load kg 250 Load capacity of top shelf kg – 100 Weight kg 12 19 TPE tyres TPE castors with precision grooved ball bearings are treadless and leave no scuffing marks. They ensure quiet running on uneven floors. They have a very low initial resistance, rolling resistance and turning resistance, are unaffected by dirt and are equipped with protection against thread entanglement. 62
