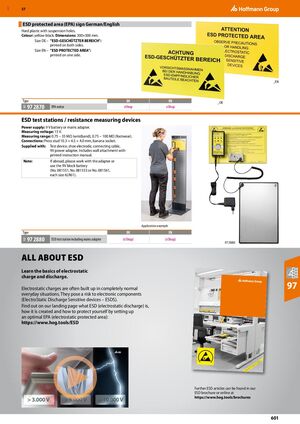

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 601

GBP 57 ESD protected area (EPA) sign German/English ​ Hard plastic with suspension holes. Colour: yellow-black. Dimensions: 300×500 mm. Size DE – ”ESD-GESCHÜTZTER BEREICH”: printed on both sides. Size EN – ”ESD PROTECTED AREA”: printed on one side. _EN Type DE EN _DE 97 2870 EPA notice eShop eShop 98E ​ESD test stations / resistance measuring devices Power supply: 9 V battery or mains adapter. Measuring voltage: 15 V. Measuring range: 0.75 – 35 MΩ (wristband), 0.75 – 100 MΩ (footwear). Connections: Press stud 10.3 + 4.5 + 4.0 mm, banana socket. Supplied with: Test device, shoe electrode, connecting cable, 9V power adapter. Includes wall attachment with printed instruction manual. Note: If abroad, please work with the adapter or use the 9V block battery (No. 081551, No. 081553 or No. 081561, each size 6LR61). Application example Type DE EN 97 2880 ESD test station including mains adapter (eShop) (eShop) 98E ​ 97 2880 ALL ABOUT ESD Learn the basics of electrostatic charge and discharge. Electrostatic charges are often built up in completely normal 97 everyday situations. They pose a risk to electronic components (ElectroStatic Discharge Sensitive devices – ESDS). Find out on our landing page what ESD (electrostatic discharge) is, how it is created and how to protect yourself by setting up an optimal EPA (electrostatic protected area): https://www.hog.tools/ESD Further ESD articles can be found in our ESD brochure or online at https://www.hog.tools/brochures 601
