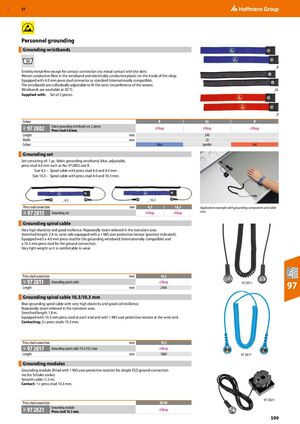

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 599

GBP 57 ​Personnel grounding Grounding wristbands ​ 30 _B Entirely metal-free except for contact connection (no metal contact with the skin). Woven conductive fibre in the wristband and electrically conductive plastic on the inside of the clasp. Equipped with 4.0 mm press stud connector as standard (internationally compatible). The wristbands are individually adjustable to fit the wrist circumference of the wearer. Wristbands are washable at 30 °C. _GL Supplied with: Set of 2 pieces. _R Colour B GL R Fabric grounding wristband set, 2 pieces 97 2802 eShop eShop eShop 98E Press stud 4.0 mm. Length mm 240 Width mm 22 Colour blue sparkle red Grounding set ​ Set consisting of: 1 pc. fabric grounding wristband, blue, adjustable, press stud 4.0 mm such as No. 972802 size B. Size 4,5 – Spiral cable with press stud 4.0 and 4.5 mm. Size 10,3 – Spiral cable with press stud 4.0 and 10.3 mm. _4,5 _10,3 Press stud connection mm 4,5 10,3 Application example with grounding component and table 97 2815 Grounding set eShop eShop mat. 98E Grounding spiral cable ​ Very high elasticity and good resilience. Repeatedly strain-relieved in the transition area. Stretched length: 2.4 m, wrist side equipped with a 1 MΩ user protective resistor (position indicated). Equipped with a 4.0 mm press stud for the grounding wristband (internationally compatible) and a 10.3 mm press stud for the ground connection. Very light weight so it is comfortable to wear. Press stud connection mm 10,3 97 2811 Grounding spiral cable eShop 97 98E 97 2811 Length mm 2400 Grounding spiral cable 10.3/10.3 mm ​ Blue grounding spiral cable with very high elasticity and good coil resilience. Repeatedly strain-relieved in the transition area. Stretched length 1.8 m. Equipped with 10.3 mm press stud at each end and with 1 MΩ user protective resistor at the wrist end. Contacting: 2× press studs 10.3 mm. Press stud connection mm 10,3 97 2817 Grounding spiral cable 10.3/10.3 mm eShop 98E Length mm 1800 97 2817 Grounding modules ​ Grounding module (fitted with 1 MΩ user protective resistor) for simple ESD ground connection via the Schuko socket. Smooth cable (1.5 m). Contact: 1× press stud 10.3 mm. 97 2821 Press stud connection DE1W Grounding module 97 2821 eShop 98E Press stud 10.3 mm. 599
