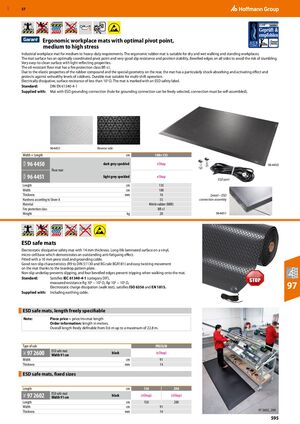

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 595

GBP 57 Ergonomic workplace mats with optimal pivot point, medium to high stress Industrial workplace mat for medium to heavy-duty requirements. The ergonomic rubber mat is suitable for dry and wet walking and standing workplaces. The mat surface has an optimally coordinated pivot point and very good slip resistance and position stability. Bevelled edges on all sides to avoid the risk of stumbling. Very easy-to-clean surface with light-reflecting properties. The oil-resistant floor mat has a fire protection class Bfl-s1. Due to the elastic properties of the rubber compound and the special geometry on the rear, the mat has a particularly shock-absorbing and activating effect and protects against unhealthy levels of coldness. Durable mat suitable for multi-shift operation. Electrically dissipative, surface resistance of less than 107 Ω. The mat is marked with an ESD safety label. Standard: DIN EN 61340-4-1 Supplied with: Mat with ESD grounding connection (hole for grounding connection can be freely selected, connection must be self-assembled). 96 4451 Reverse side Width × Length cm 100×135 96 4450 9GM dark grey speckled eShop 96 4450 Floor mat 96 4451 9GM light grey speckled eShop ESD port Length cm 135 Width cm 100 Thickness mm 16 Detail – ESD Hardness according to Shore A 55 connection assembly Material Nitrile rubber (NBR) Fire protection class Bfl-s1 Weight kg 20 96 4451 ​ESD safe mats Electrostatic dissipative safety mat with 14 mm thickness. Long-life laminated surface on a vinyl, micro-cell base which demonstrates an outstanding anti-fatiguing effect. Fitted with a 10 mm press stud and grounding cable. Good non-slip characteristics (R9 to DIN 51130 and BG rule BGR181) and easy twisting movement on the mat thanks to the teardrop pattern plate. Non-slip underlay prevents slipping, and four bevelled edges prevent tripping when walking onto the mat. Standard: Satisfies IEC 61340-4-1 (category DIF), measured resistance Rg 106 − 109 Ω, Rp 106 − 109 Ω. Electrostatic charge dissipation (walk test), satisfies ISO 6356 and EN 1815. Supplied with: Including earthing cable. 97 ESD safe mats, length freely specifiable ​ Note: Piece price = price/m×mat length Order information: length in metres. Overall length freely definable from 0.6 m up to a maximum of 22.8 m. Type of sale PREIS/M ESD safe mat 97 2600 black (eShop) 96C Width 91 cm Width cm 91 Thickness mm 14 ESD safe mats, fixed sizes ​ Length cm 150 200 ESD safe mat 97 2602 black (eShop) (eShop) 96C Width 91 cm Length cm 150 200 Width cm 91 Thickness mm 14 97 2602_200 595
