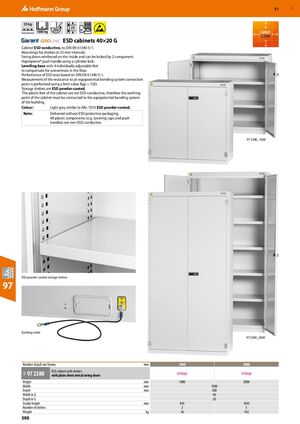

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 590

GBP 57 35 kg 25 1000 kg 250° ESD cabinets 40×20 G Cabinet ESD conductive, to DIN EN 61340-5-1. Mountings for shelves at 25 mm intervals. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene® push handle using a cylinder lock. Levelling base with 4 individually adjustable feet to compensate for unevenness in the floor. Performance of ESD tests based on DIN EN 61340-5-1. Measurement of the resistance to an equipotential bonding system connection point is performed using a limit value Rgp < 1GΩ. Storage shelves are ESD powder-coated. The plastic feet of the cabinet are not ESD-conductive, therefore the earthing point of the cabinet must be connected to the equipotential bonding system of the building. Colour: Light grey similar to RAL 7035 ESD powder-coated. Note: Delivered without ESD protective packaging. All plastic components (e.g. covering caps and push handles) are non-ESD conductive. 97 2380_1000 ESD powder-coated storage shelves 97 Earthing cable 97 2380_2000 Number of pull-out frames mm 1000 2000 ESD cabinet with shelves 97 2380 (eShop) (eShop) 9GI with plain sheet metal swing doors Height mm 1000 2000 Width mm 1000 Depth mm 500 Width in G 40 Depth in G 20 Usable height mm 845 1845 Number of shelves 2 5 Weight kg 56 102 590
