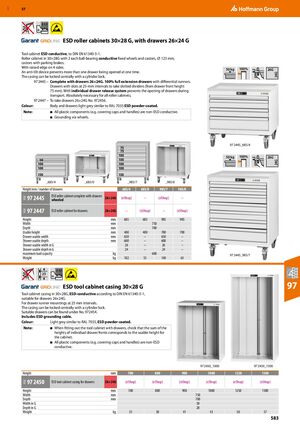

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 583

GBP 57 ESD roller cabinets 30×28 G, with drawers 26×24 G Tool cabinet ESD conductive, to DIN EN 61340-5-1. Roller cabinet in 30×28G with 2 each ball-bearing conductive fixed wheels and castors, ⌀ 125 mm, castors with parking brakes. With raised edge on 4 sides. 50 kg 100% 26G An anti-tilt device prevents more than one drawer being opened at one time. 24G The casing can be locked centrally with a cylinder lock. 97 2445 – Complete with drawers 26×24G. 100% full extension drawers with differential runners. Drawers with slots at 25-mm intervals to take slotted dividers (from drawer front height 75 mm). With individual drawer release system prevents the opening of drawers during transport. Absolutely necessary for all roller cabinets. 97 2447 – To take drawers 26×24G No. 972456. Colour: Body and drawers light grey similar to RAL 7035 ESD powder-coated. Note: ■ All plastic components (e.g. covering caps and handles) are non-ESD conductive. ■ Grounding via wheels. 97 2445_685/4 50 kg 100% 26G 24G _685/4 _685/0 _985/7 _985/0 Height mm / number of drawers 685/4 685/0 985/7 985/0 ESD roller cabinet complete with drawers 26×24G 97 2445 9GK (eShop) – (eShop) – wheeled 97 2447 9GK ESD roller cabinet for drawers 26×24G – (eShop) – (eShop) Height mm 685 685 985 985 Width mm 750 Depth mm 700 Usable height mm 400 400 700 700 Drawer usable width mm 650 – 650 – Drawer usable depth mm 600 – 600 – Drawer usable width in G 26 – 26 – Drawer usable depth in G 24 – 24 – maximum load capacity kg 600 97 2445_985/7 Weight kg 102 55 140 65 25 ESD tool cabinet casing 30×28 G 97 Tool cabinet casing in 30×28G, ESD-conductive according to DIN EN 61340-5-1, suitable for drawers 26×24G. For drawer runner mountings at 25 mm intervals. The casing can be locked centrally with a cylinder lock. Suitable drawers can be found under No. 972454. Includes ESD grounding cable. Colour: Light grey similar to RAL 7035, ESD powder-coated. Note: ■ When fitting out the tool cabinet with drawers, check that the sum of the heights of individual drawer fronts corresponds to the usable height for the cabinet. ■ All plastic components (e.g. covering caps and handles) are non-ESD conductive. 97 2450_1000 97 2450_1500 Height mm 700 800 900 1000 1250 1500 97 2450 9GK ESD tool cabinet casing for drawers 26×24G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Height mm 700 800 900 1000 1250 1500 Width mm 750 Depth mm 700 Width in G 30 Depth in G 28 Weight kg 35 38 41 43 50 57 583
