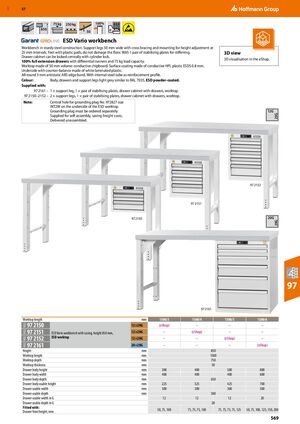

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 569

GBP 57 75 kg 250 kg 100% 850 50 ESD Vario workbench Workbench in sturdy steel construction. Support legs 50 mm wide with cross bracing and mounting for height adjustment at 25 mm intervals. Feet with plastic pads, do not damage the floor. With 1 pair of stabilising plates for stiffening. 3D view Drawer cabinet can be locked centrally with cylinder lock. 3D visualisation in the eShop. 100% full extension drawers with differential runners and 75 kg load capacity. Worktop made of 50 mm volume-conductive chipboard. Surface coating made of conductive HPL plastic ESDS 0.8 mm. Underside with counter-balance made of white laminated plastic. All-round 3 mm antistatic ABS edge band. With internal steel tube as reinforcement profile. Colour: Body, drawers and support legs light grey similar to RAL 7035, ESD powder-coated. Supplied with: 97 2161 – 1 × support leg, 1 × pair of stabilising plates, drawer cabinet with drawers, worktop. 97 2150–2152 – 2 × support legs, 1 × pair of stabilising plates, drawer cabinet with drawers, worktop. Note: Central hole for grounding plug No. 972827 size INT2W on the underside of the ESD worktop. Grounding plug must be ordered separately. 12G 20G Supplied for self-assembly, saving freight costs. Delivered unassembled. ​ 97 2152 ​ 97 2151 ​ 97 2150 20G 20G 97 ​ 97 2161 Worktop length mm 1500/3 1500/4 1500/5 1500/6 97 2150 9GG 9GG 9GG 9GG 12×20G (eShop) – – – 97 2151 ESD Vario workbench with casing, height 850 mm, 12×20G – (eShop) – – ESD worktop 97 2152 12×20G – – (eShop) – 97 2161 20×20G – – – (eShop) Height mm 850 Worktop length mm 1500 Worktop depth mm 750 Worktop thickness mm 50 Drawer body height mm 300 400 500 800 Drawer body width mm 400 400 400 600 Drawer body depth mm 650 Drawer body usable height mm 225 325 425 700 Drawer usable width mm 300 300 300 500 Drawer usable depth mm 500 Drawer usable width in G 12 12 12 20 Drawer usable depth in G 20 Fitted with: 50, 75, 100 75, 75, 75, 100 75, 75, 75, 75, 125 50, 75, 100, 125, 150, 200 Drawer front height, mm 569
