Производственная мебель и системы хранения Hoffmann Group 2026 - страница 522

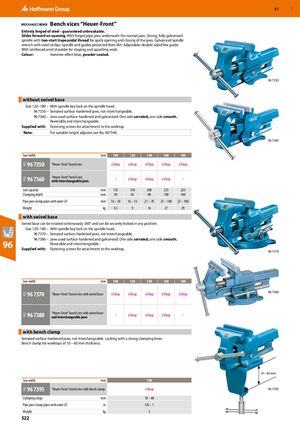

GBP 57 ​ Bench vices “Heuer-Front” Entirely forged of steel - guaranteed unbreakable. Slides forward on opening. With forged pipe jaws underneath the normal jaws. Strong, fully galvanised spindle with two-start trapezoidal thread for quick opening and closing of the jaws. Galvanised spindle wrench with steel circlips. Spindle and guides protected from dirt. Adjustable, double-sided Vee guide. With reinforced anvil shoulder for shaping and upsetting work. Colour: Hammer-effect blue, powder-coated. 96 7350 without swivel base ​ Size 120–180 – With spindle key lock on the spindle head. 96 7350 – Serrated surface-hardened jaws, not interchangeable. 96 7360 – Jaws used surface-hardened and galvanised. One side serrated, one side smooth. Reversible and interchangeable. Supplied with: Fastening screws for attachment to the worktop. Note: For suitable height adjuster see No. 967540. 96 7360 Jaw width mm 100 120 140 160 180 96 7350 93Q “Heuer-Front” bench vice eShop eShop eShop eShop eShop “Heuer-Front” bench vice 96 7360 93Q – eShop eShop eShop – with interchangeable jaws Jaw capacity mm 125 150 200 225 225 Clamping depth mm 50 65 80 100 100 Pipe jaws clamp pipes with outer ⌀ mm 16 – 30 16 – 55 27 – 70 27 – 100 27 – 100 Weight kg 4.5 9 16 27 29 with swivel base ​ Swivel base can be rotated continuously 360° and can be securely locked in any position. Size 120–180 – With spindle key lock on the spindle head. 96 7370 – Serrated surface-hardened jaws, not interchangeable. 96 7380 – Jaws used surface-hardened and galvanised. One side serrated, one side smooth. 96 Reversible and interchangeable. Supplied with: Fastening screws for attachment to the worktop. 96 7370 Jaw width mm 100 120 140 160 180 96 7380 96 7370 93Q “Heuer-Front” bench vice with swivel base eShop eShop eShop eShop eShop “Heuer-Front” bench vice with swivel base 96 7380 93Q – eShop eShop eShop – and interchangeable jaws with bench clamp ​ Serrated surface-hardened jaws, not interchangeable. Locking with a strong clamping lever. Bench clamp for worktops of 10 – 60 mm thickness. 10 – 60 mm Jaw width mm 100 96 7395 93Q “Heuer-Front” bench vice with bench clamp eShop 96 7395 Clamping range mm 10 – 60 Pipe jaws clamp pipes with outer ⌀ in 3/8 – 1 Weight kg 5 522
