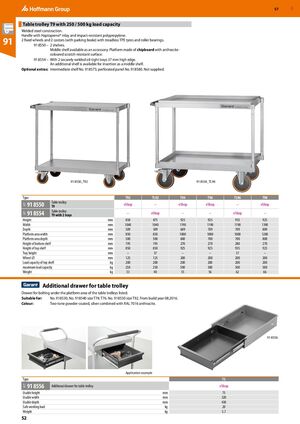

GBP 57 Table trolley T9 with 250 / 500 kg load capacity ​ Welded steel construction. Handle with Haptoprene® inlay and impact-resistant polypropylene. 91 2 fixed wheels and 2 castors (with parking brake) with treadless TPE tyres and roller bearings. 91 8550 – 2 shelves. Middle shelf available as an accessory. Platform made of chipboard with anthracite- coloured scratch-resistant surface. 91 8554 – With 2 securely welded oil-tight trays 37 mm high edge. An additional shelf is available for insertion as a middle shelf. Optional extras: Intermediate shelf No. 918575; perforated panel No. 918580. Not supplied. ​ 91 8550_T92 ​ 91 8554_TL96 Type T92 TL92 T94 T96 TL96 T98 Table trolley 91 8550 eShop – eShop eShop – eShop 91T T9 Table trolley 91 8554 – eShop – – eShop – 91T T9 with 2 trays Height mm 850 875 925 925 955 925 Width mm 1040 1040 1190 1190 1190 1390 Depth mm 509 509 609 709 709 809 Platform area width mm 850 850 1000 1000 1000 1200 Platform area depth mm 500 500 600 700 700 800 Height of bottom shelf mm 195 195 270 270 280 270 Height of top shelf mm 850 850 925 925 935 925 Tray height mm – 37 – – 37 – Wheel ⌀ mm 125 125 200 200 200 200 Load capacity of top shelf kg 200 200 200 200 200 200 maximum load capacity kg 250 250 500 500 500 500 Weight kg 33 40 55 56 62 66 ​ Additional drawer for table trolley Drawer for bolting under the platform area of the table trolleys listed. Suitable for: No. 918530, No. 918540 size T74; T76. No. 918550 size T92. From build year 08.2016. Colour: Two-tone powder-coated, silver combined with RAL 7016 anthracite. 91 8556 Application example Type 75 91 8556 Additional drawer for table trolley eShop 91T Usable height mm 75 Usable width mm 320 Usable depth mm 430 Safe working load kg 20 Weight kg 5.7 52
