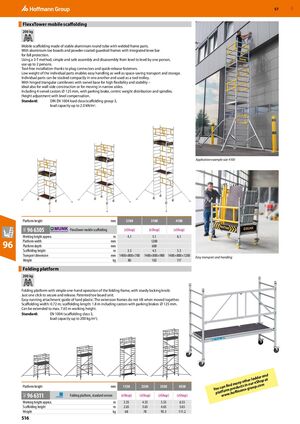

GBP 57 FlexxTower mobile scaffolding ​ 200 kg Mobile scaffolding made of stable aluminium round tube with welded frame parts. With aluminium toe boards and powder-coated guardrail frames with integrated knee bar for fall protection. Using a 3-T method, simple and safe assembly and disassembly from level to level by one person, use up to 2 persons. Tool-free installation thanks to plug connectors and quick-release fasteners. Low weight of the individual parts enables easy handling as well as space-saving transport and storage. Individual parts can be stacked compactly in one another and used as a tool trolley. With hinged triangular cantilevers with swivel base for high flexibility and stability – ideal also for wall-side construction or for moving in narrow aisles. Including 4 swivel castors ⌀ 125 mm, with parking brake, centric weight distribution and spindles. Height adjustment with level compensation. Standard: DIN EN 1004 load class/scaffolding group 3, load capacity up to 2.0 kN/m2. Application example size 4100 Platform height mm 2100 3100 4100 96 6305 98G FlexxTower mobile scaffolding (eShop) (eShop) (eShop) Working height approx. m 4.1 5.1 6.1 Platform width mm 1200 96 Platform depth Scaffolding height mm m 3.3 600 4.3 5.3 Transport dimension mm 1400×800×700 1400×800×900 1400×800×1200 Easy transport and handling Weight kg 80 102 117 Folding platform ​ 200 kg Folding platform with simple one-hand operation of the folding frame, with sturdy locking knob: Just one click to secure and release. Patented toe board unit. Easy-running attachment guide of hard plastic: The extension frames do not tilt when moved together. Scaffolding width: 0.72 m; scaffolding length: 1.8 m including castors with parking brakes ⌀ 125 mm. Can be extended to max. 7.65 m working height. Standard: EN 1004 (scaffolding class 3, load capacity up to 200 kg/m2). r and t h e r laddeop at ny o eSh d ma cts in our p.com Platform height mm 1550 2550 3550 4550 an fin u u You c form prod ann-gro plat ww.hoffm 96 6311 Folding platform, standard version (eShop) (eShop) (eShop) (eShop) 96Z w Working height approx. m 3.55 4.55 5.55 6.55 Scaffolding height m 2.65 3.65 4.65 5.65 Weight kg 68 78 95.3 111.2 516
