Производственная мебель и системы хранения Hoffmann Group 2026 - страница 508

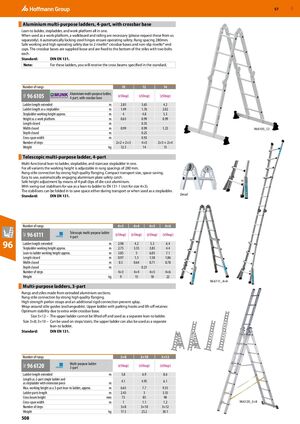

GBP 57 Aluminium multi-purpose ladders, 4-part, with crossbar base ​ Lean-to ladder, stepladder, and work platform all in one. When used as a work platform, a walkboard and railing are necessary (please request these from us separately). 6 automatically locking steel hinges ensure operating safety. Rung spacing 280mm. Safe working and high operating safety due to 2 nivello® crossbar bases and non-slip nivello® end caps. The crossbar bases are supplied loose and are fixed to the bottom of the stiles with two bolts each. Standard: DIN EN 131. Note: For these ladders, you will receive the cross beams specified in the standard. Number of rungs 10 12 14 Aluminium multi-purpose ladder, 96 6105 98G (eShop) (eShop) (eShop) 4-part, with crossbar base Ladder length extended m 2.85 3.65 4.2 Ladder length as a stepladder m 1.49 1.76 2.02 Stepladder working height approx. m 4 4.8 5.3 Height as a work platform m 0.63 0.99 0.99 Length closed m 0.35 Width closed m 0.99 0.99 1.23 96 6105_12 Depth closed m 0.25 Cross-span width m 0.93 Number of steps 2×2 + 2×3 4×3 2×3 + 2×4 Weight kg 12.5 14 15 Telescopic multi-purpose ladder, 4-part ​ Multi-functional lean-to ladder, stepladder, and staircase stepladder in one. For all variants the working height is adjustable in rung spacings of 280 mm. Rung-stile connection by strong high quality flanging. Compact transport size, space-saving. Easy to use, automatically engaging aluminium plate safety catch. Safe height adjustment by means of 4 pull clips of die-cast aluminium. With swing-out stabilisers for use as a lean-to ladder to EN 131-1 (not for size 4×3). The stabilisers can be folded in to save space either during transport or when used as a stepladder. Detail Standard: DIN EN 131. Number of rungs 4×3 4×4 4×5 4×6 Telescopic multi-purpose ladder 96 6111 (eShop) (eShop) (eShop) (eShop) 96Z 4-part 96 Ladder length extended Stepladder working height approx. m m 2.98 2.75 4.2 3.35 5.3 3.85 6.4 4.4 Lean-to ladder working height approx. m 3.85 5 6.05 7.1 Length closed m 0.97 1.3 1.58 1.86 Width closed m 0.5 0.64 0.71 0.78 Depth closed m 0.21 Number of steps 4×3 4×4 4×5 4×6 Weight kg 9 15 18 22 96 6111_4×4 Multi-purpose ladders, 3-part ​ Rungs and stiles made from extruded aluminium sections. Rung-stile connection by strong high quality flanging. High-strength perlon straps and an additional rigid connection prevent splay. Wrap-around stile guides (exchangeable). Upper ladder with parking hooks and lift-off retainer. Optimum stability due to extra wide crossbar base. Size 3×12 – The upper ladder cannot be lifted off and used as a separate lean-to ladder. Size 3×8; 3×10 – Can be used on steps/stairs, the upper ladder can also be used as a separate lean-to ladder. Standard: DIN EN 131. Number of rungs 3×8 3×10 3×12 Multi-purpose ladder 96 6120 (eShop) (eShop) (eShop) 96Z 3-part Ladder length extended m 5.8 6.9 8.6 Length as 2-part single ladder and 4.1 4.95 6.1 as stepladder with extension piece m Max. working height as a 3-part lean-to ladder, approx. m 6.65 7.7 9.35 Ladder parts length m 2.45 3 3.55 Cross beam height mm 73 85 98 Cross-span width m 1 1.1 1.2 96 6120_3×8 Number of steps 3×8 3×10 3×12 Weight kg 17.5 25.2 30.1 508
