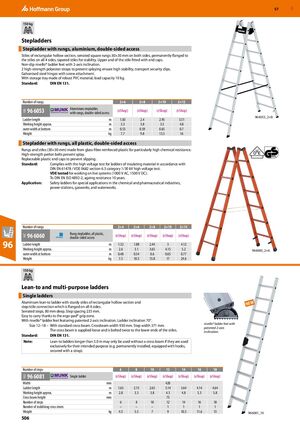

GBP 57 150 kg ​Stepladders Stepladder with rungs, aluminium, double-sided access ​ Stiles of rectangular hollow section, serrated square rungs 30×30 mm on both sides, permanently flanged to the stiles on all 4 sides, tapered stiles for stability. Upper and of the stile fitted with end caps. Non-slip nivello® ladder feet with 2-axis inclination. 2 high-strength polyester straps to prevent splaying ensure high stability, transport security clips. Galvanised steel hinges with screw attachment. With storage tray made of robust PVC material, load capacity 10 kg. Standard: DIN EN 131. Number of rungs 2×6 2×8 2×10 2×12 Aluminium stepladder, 96 6053 98G (eShop) (eShop) (eShop) (eShop) with rungs, double-sided access 96 6053_2×8 Ladder length m 1.83 2.4 2.95 3.51 Working height approx. m 3.3 3.8 3.3 4.8 outer width at bottom m 0.53 0.59 0.65 0.7 Weight kg 7.7 9.8 13.3 16 Stepladder with rungs, all plastic, double-sided access ​ Rungs and stiles (30×30 mm) made from glass-fibre reinforced plastic for particularly high chemical resistance. High-strength perlon belts prevent splay. Replaceable plastic end caps to prevent slipping. Standard: Complies with the high voltage test for ladders of insulating material in accordance with DIN EN 61478 / VDE 0682 section 6.5 category 1/30 kV high voltage test. VDE tested for working on live systems (1000 V AC, 1500 V DC). To DIN EN ISO 4892-2, ageing resistance 10 years. Application: Safety ladders for special applications in the chemical and pharmaceutical industries, power-stations, gasworks, and waterworks. Number of rungs 2×4 2×6 2×8 2×10 2×14 Rung stepladder, all plastic, 96 6060 (eShop) (eShop) (eShop) (eShop) (eShop) 96Z double-sided access 96 Ladder length Working height approx. m m 1.32 2.6 1.88 3.1 2.44 3.65 3 4.15 4.12 5.2 96 6060_2×6 outer width at bottom m 0.48 0.54 0.6 0.65 0.77 Weight kg 7.5 10.5 13.8 17 24.6 150 kg ​Lean-to and multi-purpose ladders Single ladders ​ Aluminium lean-to ladder with sturdy stiles of rectangular hollow section and NEW step/stile connection which is flanged on all 4 sides. Serrated steps, 80 mm deep. Step spacing 235 mm. Easy to carry thanks to the ergo-pad® grip zone. With nivello® ladder feet featuring patented 2-axis inclination. Ladder inclination 70°. nivello® ladder feet with Size 12–18 – With standard cross beam. Crossbeam width 930 mm. Step width 371 mm. patented 2-axis The cross beam is supplied loose and is bolted twice to the lower ends of the stiles. inclination. Standard: DIN EN 131. Note: Lean-to ladders longer than 3.0 m may only be used without a cross beam if they are used exclusively for their intended purpose (e.g. permanently installed, equipped with hooks, secured with a strap). Number of steps 6 8 10 12 14 16 18 96 6081 98G Single ladder (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Width mm 420 Ladder length m 1.65 2.15 2.65 3.14 3.64 4.14 4.64 Working height approx. m 2.8 3.3 3.8 4.3 4.8 5.3 5.8 Cross beam height mm 73 Number of steps 6 8 10 12 14 16 18 Number of stabilising cross struts – – – 1 1 1 1 Weight kg 4.5 5.5 7 9 10.5 11.6 13 96 6081_10 506
