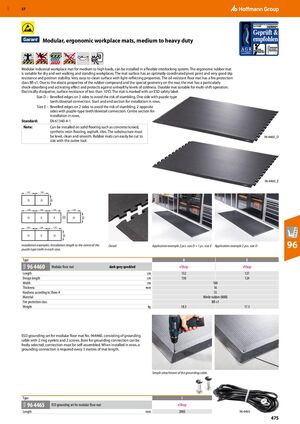

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 475

GBP 57 Modular, ergonomic workplace mats, medium to heavy duty Modular industrial workplace mat for medium to high loads, can be installed in a flexible interlocking system. The ergonomic rubber mat is suitable for dry and wet walking and standing workplaces. The mat surface has an optimally coordinated pivot point and very good slip resistance and position stability. Very easy-to-clean surface with light-reflecting properties. The oil-resistant floor mat has a fire protection class Bfl-s1. Due to the elastic properties of the rubber compound and the special geometry on the rear, the mat has a particularly shock-absorbing and activating effect and protects against unhealthy levels of coldness. Durable mat suitable for multi-shift operation. Electrically dissipative, surface resistance of less than 107Ω. The mat is marked with an ESD safety label. Size D – Bevelled edges on 3 sides to avoid the risk of stumbling. One side with puzzle-type teeth/dovetail connection. Start and end section for installation in rows. Size E – Bevelled edges on 2 sides to avoid the risk of stumbling. 2 opposite sides with puzzle-type teeth/dovetail connection. Centre section for installation in rows. Standard: EN 61340-4-1 Note: Can be installed on solid flooring such as concrete/screed, synthetic resin flooring, asphalt, tiles. The substructure must be level, clean and smooth. Rubber mats can easily be cut to 96 4460_D size with the cutter tool. 96 4460_E 130 130 100 D D 130 124 124 130 25.5 25.5 100 D E E D 130 124 130 25.5 100 D E D Installation examples: Installation length to the centre of the puzzle-type teeth in each case. Detail Application example 2 pcs. size D + 1 pc. size E Application example 2 pcs. size D 96 Type D E 96 4460 9GM Modular floor mat dark grey speckled eShop eShop Length cm 132 127 Design length cm 130 124 Width cm 100 Thickness mm 16 Hardness according to Shore A 55 Material Nitrile rubber (NBR) Fire protection class Bfl-s1 Weight kg 18.3 17.5 ESD grounding set for modular floor mat No. 964460, consisting of grounding cable with 2 ring eyelets and 2 screws. Bore for grounding connection can be freely selected, connection must be self-assembled. When installed in rows, a grounding connection is required every 5 metres of mat length. Simple attachment of the grounding cable. Type 1 96 4465 9GM ESD grounding set for modular floor mat eShop Length mm 2000 ​ 96 4465 475
