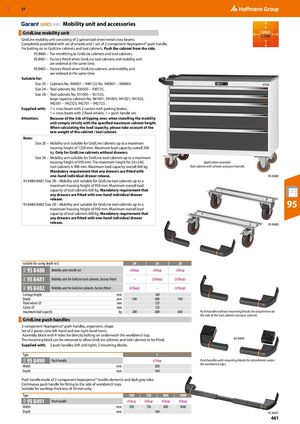

GBP 57 ​ Mobility unit and accessories GridLine mobility unit ​ GridLine mobility unit consisting of 2 galvanised sheet metal cross beams. Completely assembled with set of wheels and 1 set of 2-component Haptoprene® push handle. For bolting on to GridLine cabinets and tool cabinets. Push the cabinet from the side. 95 8480 – For retrofitting to GridLine cabinets and tool cabinets. 95 8481 – Factory fitted when GridLine tool cabinets and mobility unit are ordered at the same time. 95 8482 – Factory fitted when GridLine cabinets and mobility unit are ordered at the same time. Suitable for: Size 20 – Cabinets No. 940001 – 940123; No. 940801 – 940863. Size 24 – Tool cabinets No. 930505 – 930735. Size 28 – Tool cabinets No. 931005 – 931535, large-capacity cabinets No. 941001, 941003, 941021, 941023, 942301 – 942323, 942701 – 942723. Supplied with: 1 × cross beam with 2 castors with parking brakes, 1 × cross beam with 2 fixed wheels, 1 × push handle set. Attention: Because of the risk of tipping over, when installing the mobility unit comply strictly with the specified maximum cabinet height. When calculating the load capacity, please take account of the tare weight of the cabinet / tool cabinet. Note: Size 20 – Mobility unit suitable for GridLine cabinets up to a maximum housing height of 1250 mm. Maximum load capacity overall 200 kg. Only for GridLine cabinets without drawers. Size 24 – Mobility unit suitable for GridLine tool cabinets up to a maximum housing height of 950 mm. The maximum height for 24×24G Application example: tool cabinets is 900 mm. Maximum load capacity overall 600 kg. Tool cabinet with wheels and push handle. Mandatory requirement that any drawers are fitted with one-hand individual drawer release. 95 8480 95 8480/8481 Size 28 – Mobility unit suitable for GridLine tool cabinets up to a maximum housing height of 950 mm. Maximum overall load capacity of tool cabinets 600 kg. Mandatory requirement that any drawers are fitted with one-hand individual drawer release. 95 8480/8482 Size 28 – Mobility unit suitable for GridLine tool cabinets up to a maximum housing height of 950 mm. Maximum overall load 95 capacity of tool cabinets 600 kg. Mandatory requirement that any drawers are fitted with one-hand individual drawer release. 95 8480 suitable for casing depth in G 20 24 28 95 8480 9GK Mobility unit retrofit set eShop eShop eShop 95 8481 9GK Mobility unit for GridLine tool cabinets, factory fitted – (eShop) (eShop) 95 8482 9GK Mobility unit for GridLine cabinets, factory fitted (eShop) – (eShop) Carriage height mm 160 Depth mm 500 600 700 Fixed wheel ⌀ mm 125 Castor ⌀ mm 125 maximum load capacity kg 200 600 600 Push handles without mounting blocks for attachment on the side of the tool cabinet casing or cabinet. GridLine push handles ​ 2-component Haptoprene® push handles, ergonomic shape. Set of 2 pieces (one left-hand and one right-hand horn). Assembly block with 4 holes for directly bolting on underneath the workbench top. The mounting block can be removed to allow GridLine cabinets and tool cabinets to be fitted. 95 8490 Supplied with: 2 push handles (left and right), 2 mounting blocks. Type 1 95 8490 9GB Push handle eShop Push handles with mounting blocks for attachment under the workbench tops. Width mm 200 Depth mm 160 Push handle made of 2-component Haptoprene® handle elements and dark grey tube. Continuous push handle for fitting to the side of workbench tops. Suitable for worktop thickness of 50 mm only. Type 700 750 800 1000 95 8491 9GB Push handle eShop eShop eShop eShop Width mm 700 750 800 1000 Depth mm 160 95 8491 461
