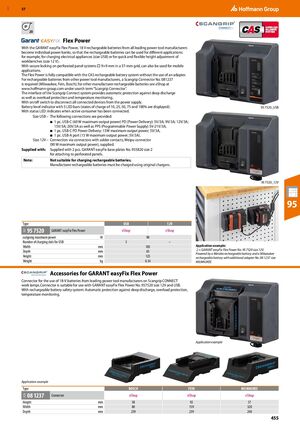

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 455

GBP 57 IP 20 Flex Power With the GARANT easyFix Flex Power, 18 V rechargeable batteries from all leading power tool manufacturers become individual power banks, so that the rechargeable batteries can be used for different applications: for example, for charging electrical appliances (size USB) or for quick and flexible height adjustment of workbenches (size 12 V). With secure locking on perforated panel systems □ 9×9 mm in a 37-mm grid, can also be used for mobile applications. The Flex Power is fully compatible with the CAS rechargeable battery system without the use of an adapter. For rechargeable batteries from other power tool manufacturers, a Scangrip Connector No. 081237 is required (Milwaukee, Fein, Bosch); for other manufacturer rechargeable batteries see eShop at www.hoffmann-group.com under search term “Scangrip Connector”. The interface of the Scangrip Connect system provides automatic protection against deep discharge as well as overload protection and temperature monitoring. With on/off switch to disconnect all connected devices from the power supply. Battery level indicator with 5 LED bars (states of charge of 10, 25, 50, 75 and 100% are displayed). ​ 95 7520_USB With status LED: indicates when active consumer has been connected. Size USB – The following connections are provided: ■ 1 pc. USB-C (60 W maximum output power) PD (Power Delivery): 5V/3A; 9V/3A; 12V/3A; 15V/3A; 20V/3A as well as PPS (Programmable Power Supply) 5V-21V/3A, ■ 1 pc. USB-C PD Power Delivery: 15W maximum output power; 5V/3A, ■ 1 pc. USB-A port (15 W maximum output power; 5V/3A). Size 12V – Connection via connectors with solder contacts, Weipu connector (90 W maximum output power), supplied. Supplied with: Supplied with 2 pcs. GARANT easyFix base plates No. 955820 size 2 for attaching to perforated panels. Note: Not suitable for charging rechargeable batteries. Manufacturer rechargeable batteries must be charged using original chargers. ​ 95 7520_12V 95 Type USB 12V 95 7520 GARANT easyFix Flex Power eShop eShop 91F outgoing maximum power W 90 Number of charging slots for USB 3 – Width mm 185 Application example: 2 × GARANT easyFix Flex Power No. 95 7520 size 12V. Depth mm 65 Powered by a Metabo rechargeable battery and a Milwaukee Height mm 125 rechargeable battery with additional adapter No. 08 1237 size Weight kg 0.34 MILWAUKEE. ​ Accessories for GARANT easyFix Flex Power Connector for the use of 18-V batteries from leading power tool manufacturers on Scangrip CONNECT work lamps.Connector is suitable for use with GARANT easyFix Flex Power No. 957520 size 12V and USB. With rechargeable battery safety system: Automatic protection against deep discharge, overload protection, temperature monitoring. Application example Application example Type BOSCH FEIN MILWAUKEE 08 1237 Connector eShop eShop eShop 07A Height mm 58 92 57 Width mm 80 159 320 Depth mm 239 239 240 455
