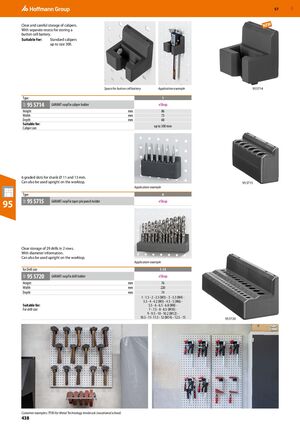

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 438

GBP 57 Clear and careful storage of calipers. NEW With separate recess for storing a button cell battery. Suitable for: Standard calipers up to size 300. Space for button cell battery Application example 95 5714 Type 1 95 5714 GARANT easyFix caliper holder eShop 91F Height mm 86 Width mm 73 Depth mm 60 Suitable for: up to 300 mm Caliper size 6 graded slots for shank ⌀ 11 and 13 mm. Can also be used upright on the worktop. 95 5715 Application example Type 6 95 5715 95 GARANT easyFix taper pin punch holder eShop 91F Clear storage of 29 drills in 2 rows. With diameter information. Can also be used upright on the worktop. Application example for Drill size 1-13 95 5720 GARANT easyFix drill holder eShop 91F Height mm 76 Width mm 220 Depth mm 74 1 - 1.5 - 2 - 2.5 (M3) - 3 - 3.3 (M4) - 3.5 - 4 - 4.2 (M5) - 4.5 - 5 (M6) - Suitable for: 5.5 - 6 - 6.5 - 6.8 (M8) - For drill size 7 - 7.5 - 8 - 8.5 (M10) - 9 - 9.5 - 10 - 10.2 (M12) - 10.5 - 11- 11.5 - 12 (M14) - 12.5 - 13 95 5720 Customer examples: TFBS for Metal Technology Innsbruck (vocational school) 438
