Производственная мебель и системы хранения Hoffmann Group 2026 - страница 426

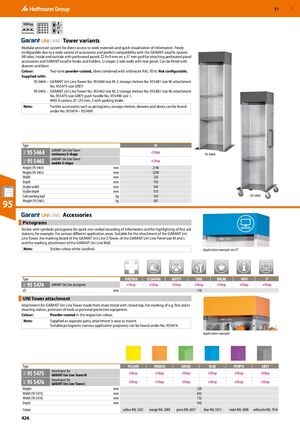

GBP 57 100 kg 37 Tower variants Modular provision system for direct access to work materials and quick visualisation of information. Freely configurable due to a wide variety of accessories and perfect compatibility with the GARANT easyFix system. All sides, inside and outside with perforated panels □ 9×9 mm on a 37 mm grid for attaching perforated panel accessories and GARANT easyFix hooks and holders. U-shape: 2 side walls with rear panel. Can be fitted with drawers and door. Colour: Two-tone powder-coated, silver combined with anthracite RAL 7016. Not configurable. Supplied with: 95 5464 – GARANT Uni Line Tower No. 955460 size M; 2 storage shelves No. 955481 size M; attachment No. 955475 size GREY. 95 5465 – GARANT Uni Line Tower No. 955462 size M; 2 storage shelves No. 955481 size M; attachment No. 955475 size GREY; push handle No. 955496 size 1. With 4 castors, ⌀ 125 mm, 2 with parking brake. Note: Further accessories such as pictograms, storage shelves, drawers and doors can be found under No. 955474 – 955499. Type M GARANT Uni Line Tower 95 5464 9GC eShop stationary U-shape 95 5464 GARANT Uni Line Tower 95 5465 9GC eShop mobile U-shape Height (95 5464) mm 2140 Height (95 5465) mm 2290 Width mm 720 Depth mm 750 Usable width mm 540 Usable depth mm 510 Safe working load kg 150 95 5465 95 Weight (95 5465) kg 105 ​ Accessories Pictograms ​ Sticker with symbolic pictograms for quick non-verbal recording of information and for highlighting of first aid stations, for example. For various different application areas. Suitable for the attachment of the GARANT Uni Line Tower, the marking board of the GARANT Uni Line Z-Tower, of the GARANT Uni Line Panel size M and L and the marking attachment of the GARANT Uni Line Wall. Note: Sticker colour white (outline). Application example size IT Type FIRSTAID CLEANING SAFETY TOOL BREAK INFO IT 95 5474 9GC GARANT Uni Line pictogram eShop eShop eShop eShop eShop eShop eShop ⌀ mm 170 UNI Tower attachment ​ Attachment for GARANT Uni Line Tower made from sheet metal with closed top. For marking of e.g. first aid or cleaning station, provision of tools or personal protective equipment. Colour: Powder-coated in the respective colour. Note: Supplied as separate parts, attachment is easy to mount. Suitable pictograms (various application purposes) can be found under No. 955474. Application example Type YELLOW ORANGE GREEN BLUE PURPLE GREY Attachment for 95 5475 9GC eShop eShop eShop eShop eShop eShop GARANT Uni Line Tower M Attachment for 95 5476 9GC eShop eShop eShop eShop eShop eShop GARANT Uni Line Tower L Height mm 220 Width (95 5475) mm 602 Width (95 5476) mm 752 Depth mm 542 Colour yellow RAL 1021 orange RAL 2008 green RAL 6037 blue RAL 5015 violet RAL 4008 anthracite RAL 7016 426
