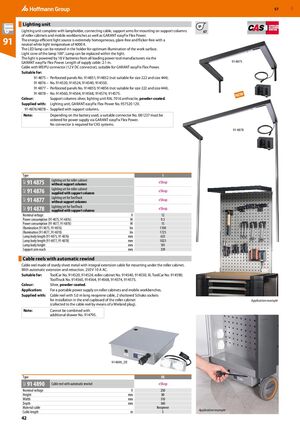

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 42

GBP 57 Lighting unit ​ IP Lighting unit complete with lampholder, connecting cable, support arms for mounting on support columns 67 of roller cabinets and mobile workbenches as well as GARANT easyFix Flex Power. 91 The energy-efficient light source is extremely homogeneous, glare-free and flicker-free with a neutral white light temperature of 4000 K. The LED lamp can be rotated in the holder for optimum illumination of the work surface. Light cone of the lamp 100°. Lamp can be replaced within the light. The light is powered by 18 V batteries from all leading power tool manufacturers via the GARANT easyFix Flex Power. Length of supply cable: 2.1 m. 91 4875 Cable with WEIPU connector (12 V DC connector), suitable for GARANT easyFix Flex Power. Suitable for: 91 4875 – Perforated panels No. 914851; 914852 (not suitable for size 222 and size 444). 91 4876 – No. 914520, 914524, 914540, 914550. 91 4877 – Perforated panels No. 914855; 914856 (not suitable for size 222 and size 444). 91 4878 – No. 914560, 914564, 914568, 914574, 914575. NEW Colour: Support columns silver, lighting unit RAL 7016 anthracite, powder-coated. Supplied with: Lighting unit, GARANT easyFix Flex Power No. 957520 12V. 91 4876/4878 – Supplied with support columns. Note: Depending on the battery used, a suitable connector No. 081237 must be ordered for power supply via GARANT easyFix Flex Power. No connector is required for CAS systems. 91 4878 Type 1 Lighting set for roller cabinet 91 4875 9GT eShop without support columns Lighting set for roller cabinet 91 4876 9GT eShop supplied with support columns Lighting set for ToolTruck 91 4877 9GT eShop without support columns Lighting set for ToolTruck 91 4878 9GT eShop supplied with support columns Nominal voltage V 12 Power consumption (91 4875, 91 4876) W 9.5 Power consumption (91 4877, 91 4878) W 15 Illumination (91 4875, 91 4876) lm 1100 Illumination (91 4877, 91 4878) lm 1725 Lamp body length (91 4875, 91 4876) mm 633 Lamp body length (91 4877, 91 4878) mm 1023 Lamp body height mm 181 Support arm reach mm 339 Cable reels with automatic rewind Cable reel made of sturdy sheet metal with integral extension cable for mounting under the roller cabinet. With automatic extension and retraction. 250 V 10 A AC. Suitable for: ToolCar No. 914520, 914524; roller cabinet No. 914540, 914550; XL ToolCar No. 914590; ToolTruck No. 914560, 914564, 914568, 914574, 914575. Colour: Silver, powder-coated. Application: For a portable power supply on roller cabinets and mobile workbenches. Supplied with: Cable reel with 5.0 m long neoprene cable, 2 shuttered Schuko sockets for installation in the end cupboard of the roller cabinet Application example (collected to the cable reel by means of a Wieland plug). Note: Cannot be combined with additional drawer No. 914795. 91 4890_DE Type DE 91 4890 9GT Cable reel with automatic rewind eShop Nominal voltage V 250 Height mm 80 Width mm 310 Depth mm 360 Material cable Neoprene Application example Cable length m 5 42
