Производственная мебель и системы хранения Hoffmann Group 2026 - страница 418

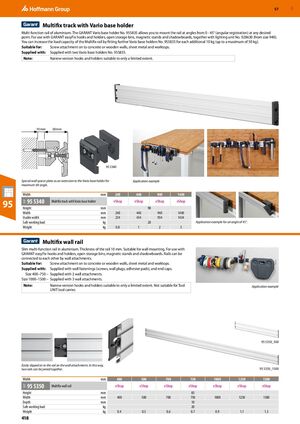

GBP 57 ​ Multifix track with Vario base holder Multi-function rail of aluminium. The GARANT Vario base holder No. 955835 allows you to mount the rail at angles from 0 - 45° (angular registration) at any desired point. For use with GARANT easyFix hooks and holders, open storage bins, magnetic stands and shadowboards, together with lighting unit No. 928630 (from size 940). You can increase the load capacity of the Multifix rail by fitting further Vario base holders No. 955835 for each additional 10 kg (up to a maximum of 50 kg). Suitable for: Screw attachment on to concrete or wooden walls, sheet metal and worktops. Supplied with: Supplied with two Vario base holders No. 955835. Note: Narrow version hooks and holders suitable to only a limited extent. 10 mm 38 mm 95 5340 Special wall spacer plate as an extension to the Vario base holder for Application example maximum tilt angle. Width mm 240 440 940 1440 95 5340 95 Multifix track with Vario base holder eShop eShop eShop eShop 91P Height mm 90 Width mm 240 440 940 1440 Usable width mm 234 434 934 1434 Safe working load kg 20 Application example for an angle of 45°. Weight kg 0.8 1 2 3 ​ Multifix wall rail Slim multi-function rail in aluminium. Thickness of the rail 10 mm. Suitable for wall mounting. For use with GARANT easyFix hooks and holders, open storage bins, magnetic stands and shadowboards. Rails can be connected to each other by wall attachments. Suitable for: Screw attachment on to concrete or wooden walls, sheet metal and worktops. Supplied with: Supplied with wall fastenings (screws, wall plugs, adhesive pads), and end caps. Size 400–750 – Supplied with 2 wall attachments. Size 1000–1500 – Supplied with 3 wall attachments. Note: Narrow version hooks and holders suitable to only a limited extent. Not suitable for Tool Application example UNIT tool carrier. 95 5350_500 Easily slipped on to the rail on the wall attachments. In this way, two rails can be joined together. 95 5350_1500 Width mm 400 500 700 750 1000 1250 1500 95 5350 Multifix wall rail eShop eShop eShop eShop eShop eShop eShop 91F Height mm 83 Width mm 400 500 700 750 1000 1250 1500 Depth mm 10 Safe working load kg 20 Weight kg 0.4 0.5 0.6 0.7 0.9 1.1 1.3 418
