Производственная мебель и системы хранения Hoffmann Group 2026 - страница 315

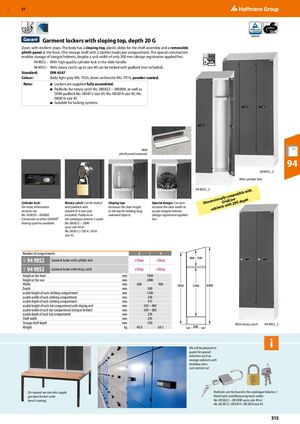

GBP 57 225° Garment lockers with sloping top, depth 20 G Doors with resilient stops. The body has a sloping top, plastic slides for the shelf assembly and a removable plinth panel at the front. One storage shelf with 2 clothes hooks per compartment. The special construction enables storage of integral helmets, despite a unit width of only 300 mm (design registration applied for). 94 9052 – With high quality cylinder lock in the slide handle. 94 9053 – With rotary catch; up to size 40 can be locked with padlock (not included). Standard: DIN 4547 Colour: Body light grey RAL 7035, doors anthracite RAL 7016, powder-coated. Note: ■ Lockers are supplied fully assembled. ■ Padlocks for rotary catch No. 085822 − 085890, as well as DOM padlock No. 085812 size 45; No. 085814 size 45; No. 085816 size 45. ■ Suitable for locking systems. With plinth panel removed. 94 94 9052_3 With cylinder lock 94 9052_2 with tible l l y c ompa a nsion GridLine G depth Cylinder lock: Rotary catch: Can be locked Sloping top: Special design: Cut-outs Dime ith 20 For more information with padlock with Increases the clear height increase the clear width to ets w on locks see shackle ⌀ 6 mm (not at the top for holding long accept integral helmets cabin No. 950050 – 950060. included). Padlocks in awkward objects. (design registration applied Conversion to other GARANT the catalogue volume 2 under for). locking systems available. No. 085822 − 5890 up to size 40 or No. 085812 / 5814 / 5816 size 45. Number of compartments 2 3 94 9052 Garment locker with cylinder lock eShop eShop 91G 94 9053 Garment locker with rotary catch eShop eShop 91G Height at the front mm 1850 Height at the rear mm 2000 Width mm 600 900 Depth mm 500 usable height of each clothing compartment mm 1240 usable width of each clothing compartment mm 240 usable depth of each clothing compartment mm 475 usable height of each hat compartment with sloping roof mm 420 – 480 usable width of each hat compartment (integral helmet) mm 240 – 280 usable depth of each hat compartment mm 250 Shelf width mm 295 Storage shelf depth mm 250 With rotary catch 94 9053_2 Weight kg 49.8 69.3 We will be pleased to quote for special solutions such as storage cabinets with letterbox slots. Just contact us! On request we can also supply Padlocks can be found in the catalogue Volume 2 garment lockers with Hand tools and Measuring tools under: bench seating. No. 08 5822 − 08 5890 up to size 40 or No. 08 5812 / 08 5814 / 08 5816 size 45. 315
