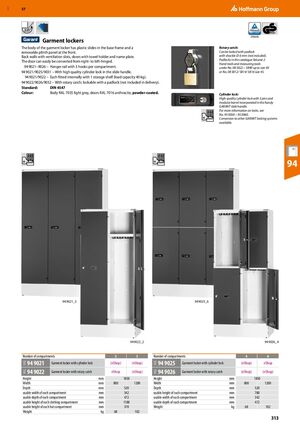

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 313

GBP 57 225° Garment lockers The body of the garment locker has plastic slides in the base frame and a Rotary catch: removable plinth panel at the front. Can be locked with padlock Back walls with ventilation slots, doors with towel holder and name plate. with shackle ⌀ 6 mm (not included). The door can easily be converted from right- to left-hinged. Padlocks in the catalogue Volume 2 Hand tools and measuring tools 94 9021–9026 – Hanger rail with 3 hooks per compartment. under No. 08 5822 – 5890 up to size 40 94 9021/9025/9031 – With high quality cylinder lock in the slide handle. or No. 08 5812/ 5814/ 5816 size 45. 94 9021/9022 – Each fitted internally with 1 storage shelf (load capacity 40 kg). 94 9022/9026/9032 – With rotary catch; lockable with a padlock (not included in delivery). Standard: DIN 4547 Colour: Body RAL 7035 light grey, doors RAL 7016 anthracite, powder-coated. Cylinder lock: High-quality cylinder lock with 5 pins and modular barrel incorporated in the handy GARANT slide handle. For more information on locks, see No. 95 0050 – 95 0060. Conversion to other GARANT locking systems available. 94 94 9021_3 94 9025_6 94 9022_2 94 9026_4 Number of compartments 2 3 Number of compartments 4 6 94 9021 Garment locker with cylinder lock (eShop) (eShop) 94 9025 Garment locker with cylinder lock (eShop) eShop 91G 91G 94 9022 Garment locker with rotary catch eShop (eShop) 94 9026 Garment locker with rotary catch (eShop) (eShop) 91G 91G Height mm 1850 Height mm 1850 Width mm 800 1200 Width mm 800 1200 Depth mm 520 Depth mm 520 usable width of each compartment mm 342 usable height of each compartment mm 780 usable depth of each compartment mm 472 usable width of each compartment mm 342 usable height of each clothing compartment mm 1188 usable depth of each compartment mm 472 usable height of each hat compartment mm 370 Weight kg 68 102 Weight kg 68 102 313
