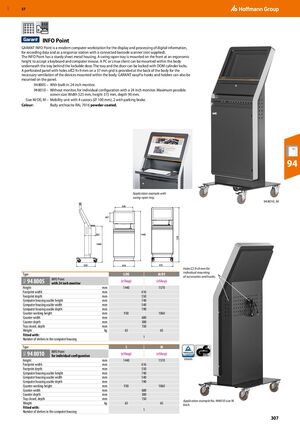

GBP 57 INFO Point GARANT INFO Point is a modern computer workstation for the display and processing of digital information, for recording data and as a response station with a connected barcode scanner (not supplied). The INFO Point has a sturdy sheet metal housing. A swing-open tray is mounted on the front at an ergonomic height to accept a keyboard and computer mouse. A PC or Linux client can be mounted within the body underneath the tray behind the lockable door. The tray and the door can be locked with DOM cylinder locks. A perforated panel with holes of□ 9×9 mm on a 37 mm grid is provided at the back of the body for the necessary ventilation of the devices mounted within the body. GARANT easyFix hooks and holders can also be mounted on the panel. 94 8005 – With built-in 24 inch monitor. 94 8010 – Without monitor, for individual configuration with a 24 inch monitor. Maximum possible screen size: Width 525 mm, height 315 mm, depth 90 mm. Size M/DE; M – Mobility unit with 4 castors (⌀ 100 mm), 2 with parking brake. Colour: Body anthracite RAL 7016 powder-coated. 94 Application example with swing-open tray. 94 8010_M Holes □ 9×9 mm for individual mounting Type S/DE M/DE of accessories and hooks. INFO Point 94 8005 9GS (eShop) (eShop) with 24 inch monitor Height mm 1440 1570 Footprint width mm 616 Footprint depth mm 550 Computer housing usable height mm 740 Computer housing usable width mm 540 Computer housing usable depth mm 190 Counter working height mm 930 1060 Counter width mm 600 Counter depth mm 300 Tray closed, depth mm 150 Weight kg 63 65 Fitted with: 1 Number of shelves in the computer housing Type S M INFO Point 94 8010 9GS (eShop) (eShop) for individual configuration Height mm 1440 1570 Footprint width mm 616 Footprint depth mm 550 Computer housing usable height mm 740 Computer housing usable width mm 540 Computer housing usable depth mm 190 Counter working height mm 930 1060 Counter width mm 600 Counter depth mm 300 Tray closed, depth mm 150 Application example No. 948010 size M Weight kg 63 65 back. Fitted with: 1 Number of shelves in the computer housing 307
