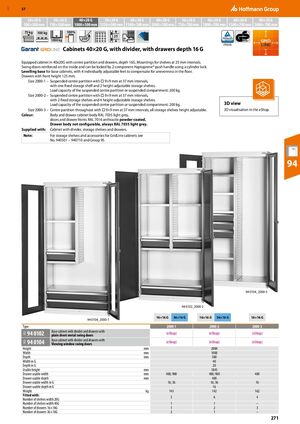

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 271

GBP 57 20×20 G 30×20 G 40×20 G 50×20 G 60×20 G 80×20 G 30×28 G 40×28 G 60×28 G 80×28 G 500×500 mm 750×500 mm 1000×500 mm 1250×500 mm 1500×500 mm 2000×500 mm 750×700 mm 1000×700 mm 1500×700 mm 2000×700 mm 75 kg 100 kg 100% 25 1000 kg 250° Cabinets 40×20 G, with divider, with drawers depth 16 G Equipped cabinet in 40x20G with centre partition and drawers, depth 16G. Mountings for shelves at 25 mm intervals. Swing doors reinforced on the inside and can be locked by 2-component Haptoprene® push handle using a cylinder lock. Levelling base for base cabinets, with 4 individually adjustable feet to compensate for unevenness in the floor. Drawers with front height 125 mm. Size 2000-1 – Suspended centre partition with □ 9×9 mm at 37 mm intervals, with one fixed storage shelf and 2 height-adjustable storage shelves. Load capacity of the suspended centre partition or suspended compartment: 200 kg. Size 2000-2 – Suspended centre partition with □ 9×9 mm at 37 mm intervals, with 2 fixed storage shelves and 4 height-adjustable storage shelves. Load capacity of the suspended centre partition or suspended compartment: 200 kg. 3D view Size 2000-3 – Centre partition throughout with □ 9×9 mm at 37 mm intervals, all storage shelves height adjustable. 3D visualisation in the eShop. Colour: Body and drawer cabinet body RAL 7035 light grey, doors and drawer fronts RAL 7016 anthracite powder-coated. Drawer body not configurable, always RAL 7035 light grey. Supplied with: Cabinet with divider, storage shelves and drawers. Note: For storage shelves and accessories for GridLine cabinets see No. 940501 – 940710 and Group 95. 94 94 0104_2000-3 94 0102_2000-2 16×16 G 36×16 G 16×16 G 36×16 G 16×16 G 94 0104_2000-1 Type 2000-1 2000-2 2000-3 Base cabinet with divider and drawers with 94 0102 (eShop) (eShop) (eShop) 9GI plain sheet metal swing doors Base cabinet with divider and drawers with 94 0104 (eShop) (eShop) (eShop) 9GI Viewing window swing doors Height mm 2000 Width mm 1000 Depth mm 500 Width in G 40 Depth in G 20 Usable height mm 1845 Drawer usable width mm 400; 900 400; 900 400 Drawer usable depth mm 400 Drawer usable width in G 16; 36 16; 36 16 Drawer usable depth in G 16 Weight kg 145 142 162 Fitted with: 3 6 4 Number of shelves width 20G Number of shelves width 40G 1 1 – Number of drawers 16×16G 1 2 3 Number of drawers 36×16G 2 1 – 271
