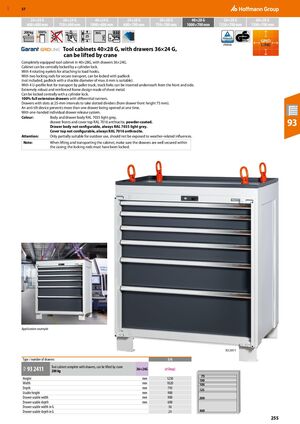

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 255

GBP 57 24×24 G 30×24 G 40×24 G 24×28 G 30×28 G 40×28 G 50×28 G 60×28 G 600×600 mm 750×600 mm 1000×600 mm 600×700 mm 750×700 mm 1000×700 mm 1250×700 mm 1500×700 mm 200 kg 100% 36G 25 24G Tool cabinets 40×28 G, with drawers 36×24 G, can be lifted by crane Completely equipped tool cabinet in 40×28G, with drawers 36×24G. Cabinet can be centrally locked by a cylinder lock. With 4 rotating eyelets for attaching to load hooks. With two locking rods for secure transport, can be locked with padlock (not included, padlock with a shackle diameter of max. 6 mm is suitable). With 4 U-profile feet for transport by pallet truck, truck forks can be inserted underneath from the front and side. Extremely robust and reinforced frame design made of sheet metal. Can be locked centrally with a cylinder lock. 100% full extension drawers with differential runners. Drawers with slots at 25-mm intervals to take slotted dividers (from drawer front height 75 mm). An anti-tilt device prevents more than one drawer being opened at one time. With one-handed individual drawer release system. Colour: Body and drawer body RAL 7035 light grey, drawer fronts and cover top RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. 93 Cover top not configurable, always RAL 7016 anthracite. Attention: Only partially suitable for outdoor use, should not be exposed to weather-related influences. Note: When lifting and transporting the cabinet, make sure the drawers are well secured within the casing; the locking rods must have been locked. Application example 93 2411 Type / number of drawers 5/6 Tool cabinet complete with drawers, can be lifted by crane 93 2411 9GK 36×24G (eShop) 200 kg Height mm 1250 Width mm 1020 Depth mm 793 Usable height mm 900 Drawer usable width mm 900 Drawer usable depth mm 600 Drawer usable width in G 36 Drawer usable depth in G 24 255
