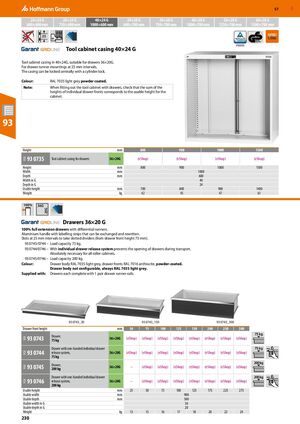

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 230

GBP 57 24×24 G 30×24 G 40×24 G 24×28 G 30×28 G 40×28 G 50×28 G 60×28 G 600×600 mm 750×600 mm 1000×600 mm 600×700 mm 750×700 mm 1000×700 mm 1250×700 mm 1500×700 mm 25 Tool cabinet casing 40×24 G Tool cabinet casing in 40×24G, suitable for drawers 36×20G. For drawer runner mountings at 25 mm intervals. The casing can be locked centrally with a cylinder lock. Colour: RAL 7035 light grey powder coated. Note: When fitting out the tool cabinet with drawers, check that the sum of the heights of individual drawer fronts corresponds to the usable height for the cabinet. 93 Height mm 800 900 1000 1500 93 0735 9GK Tool cabinet casing for drawers 36×20G (eShop) (eShop) (eShop) (eShop) Height mm 800 900 1000 1500 Width mm 1000 Depth mm 600 Width in G 40 Depth in G 24 Usable height mm 700 800 900 1400 Weight kg 42 45 47 61 100% 36G 20G Drawers 36×20 G 100% full extension drawers with differential runners. Aluminium handle with labelling strips that can be exchanged and rewritten. Slots at 25 mm intervals to take slotted dividers (from drawer front height 75 mm). 93 0743/0744 – Load capacity 75 kg. 93 0744/0746 – With individual drawer release system prevents the opening of drawers during transport. Absolutely necessary for all roller cabinets. 93 0745/0746 – Load capacity 200 kg. Colour: Drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. Supplied with: Drawers each complete with 1 pair drawer runner rails. 93 0743_50 93 0743_150 93 0743_300 Drawer front height mm 50 75 100 125 150 200 250 300 75 kg Drawer, 93 0743 9GK 36×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 75 kg Drawer with one-handed individual drawer 75 kg 93 0744 9GK release system, 36×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 75 kg 200 kg Drawer, 93 0745 9GK 36×20G – (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 200 kg Drawer with one-handed individual drawer 200 kg 93 0746 9GK release system, 36×20G – (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 200 kg Usable height mm 25 50 75 100 125 175 225 275 Usable width mm 900 Usable depth mm 500 Usable width in G 36 Usable depth in G 20 Weight kg 13 15 16 17 18 20 22 24 230
