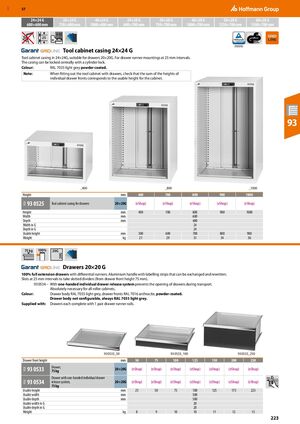

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 223

GBP 57 24×24 G 30×24 G 40×24 G 24×28 G 30×28 G 40×28 G 50×28 G 60×28 G 600×600 mm 750×600 mm 1000×600 mm 600×700 mm 750×700 mm 1000×700 mm 1250×700 mm 1500×700 mm 25 Tool cabinet casing 24×24 G Tool cabinet casing in 24×24G, suitable for drawers 20×20G. For drawer runner mountings at 25 mm intervals. The casing can be locked centrally with a cylinder lock. Colour: RAL 7035 light grey powder coated. Note: When fitting out the tool cabinet with drawers, check that the sum of the heights of individual drawer fronts corresponds to the usable height for the cabinet. 93 _400 _800 _1000 Height mm 400 700 800 900 1000 93 0525 9GK Tool cabinet casing for drawers 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) Height mm 400 700 800 900 1000 Width mm 600 Depth mm 600 Width in G 24 Depth in G 24 Usable height mm 300 600 700 800 900 Weight kg 21 29 31 34 36 75 kg 100% 20G 20G Drawers 20×20 G 100% full extension drawers with differential runners. Aluminium handle with labelling strips that can be exchanged and rewritten. Slots at 25 mm intervals to take slotted dividers (from drawer front height 75 mm). 93 0534 – With one-handed individual drawer release system prevents the opening of drawers during transport. Absolutely necessary for all roller cabinets. Colour: Drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always RAL 7035 light grey. Supplied with: Drawers each complete with 1 pair drawer runner rails. 93 0533_50 93 0533_100 93 0533_250 Drawer front height mm 50 75 100 125 150 200 250 Drawer, 93 0533 9GK 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 75 kg Drawer with one-handed individual drawer 93 0534 9GK release system, 20×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) 75 kg Usable height mm 25 50 75 100 125 175 225 Usable width mm 500 Usable depth mm 500 Usable width in G 20 Usable depth in G 20 Weight kg 8 9 10 10 11 12 15 223
