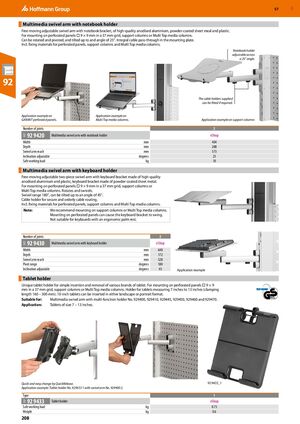

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 208

GBP 57 Multimedia swivel arm with notebook holder ​ Free-moving adjustable swivel arm with notebook bracket, of high-quality anodised aluminium, powder-coated sheet meal and plastic. For mounting on perforated panels □ 9 × 9 mm in a 37 mm grid, support columns or Multi Top media columns. Can be rotated and pivoted, and tilted up to and angle of 25°. Integral cable pass-through in the mounting plate. Incl. fixing materials for perforated panels, support columns and Multi Top media columns. Notebook holder adjustable across a 25° angle. 92 The cable holders supplied can be fitted if required. Application example on Application example on GARANT perforated panels. Multi Top media columns. Application example on support columns Number of joints 2 92 9420 Multimedia swivel arm with notebook holder eShop 91P Width mm 404 Depth mm 288 Swivel arm reach mm 573 Inclination adjustable degrees 25 Safe working load kg 10 Multimedia swivel arm with keyboard holder ​ Free-moving adjustable two-piece swivel arm with keyboard bracket made of high-quality anodised aluminium and plastic, keyboard bracket made of powder-coated sheet metal. For mounting on perforated panels □ 9 × 9 mm in a 37 mm grid, support columns or Multi Top media columns. Rotates and swivels. Swivel range 180°, can be tilted up to an angle of 45°. Cable holder for secure and orderly cable routing. Incl. fixing materials for perforated panels, support columns and Multi Top media columns. Note: We recommend mounting on support columns or Multi Top media columns. Mounting on perforated panels can cause the keyboard bracket to swing. Not suitable for keyboards with an ergonomic palm rest. Number of joints 2 92 9430 Multimedia swivel arm with keyboard holder eShop 91P Width mm 640 Depth mm 172 Swivel arm reach mm 528 Pivot range degrees 180 Inclination adjustable degrees 45 Application example Tablet holder ​ Unique tablet holder for simple insertion and removal of various brands of tablet. For mounting on perforated panels □ 9 × 9 mm in a 37 mm grid, support columns or Multi Top media columns. Holder for tablets measuring 7 inches to 13 inches (clamping length 160 – 300 mm). 10-inch tablets can be inserted in either landscape or portrait format. Suitable for: Multimedia swivel arm with multi-function holder No. 929400, 929410, 929445, 929450, 929460 and 929470. Application: Tablets of size 7 – 13 inches. Quick and easy change by QuickRelease. 92 9433_1 Application example: Tablet holder No. 929433 1 with swivel arm No. 929400 2. Type 1 92 9433 Tablet holder eShop 91P Safe working load kg 0.75 Weight kg 0.6 208
