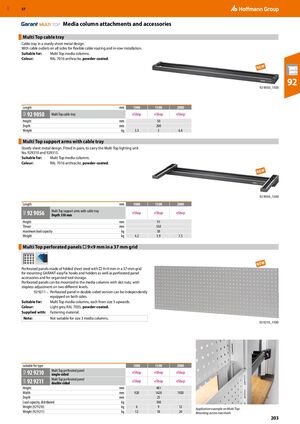

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 203

GBP 57 ​ Media column attachments and accessories Multi Top cable tray ​ Cable tray in a sturdy sheet metal design. With cable outlets on all sides for flexible cable routing and in-row installation. Suitable for: Multi Top media columns. Colour: RAL 7016 anthracite, powder-coated. NEW 92 9050_1500 92 Length mm 1000 1500 2000 92 9050 9GR Multi Top cable tray eShop eShop eShop Height mm 50 Depth mm 200 Weight kg 3.3 5 6.6 Multi Top support arms with cable tray ​ Sturdy sheet metal design. Fitted in pairs, to carry the Multi Top lighting unit No. 929310 and 929315. Suitable for: Multi Top media columns. Colour: RAL 7016 anthracite, powder-coated. NEW 92 9056_1500 Length mm 1000 1500 2000 Multi Top support arms with cable tray 92 9056 9GR eShop eShop eShop Depth 550 mm Height mm 91 Throat mm 550 maximum load capacity kg 50 Weight kg 4.2 5.9 7.5 Multi Top perforated panels □ 9×9 mm in a 37 mm grid ​ NEW Perforated panels made of folded sheet steel with □ 9×9 mm in a 37-mm grid for mounting GARANT easyFix hooks and holders as well as perforated panel accessories and for organised tool storage. Perforated panels can be mounted to the media columns with slot nuts, with stepless adjustment on two different levels. 92 9211 – Perforated panel in double-sided version can be independently equipped on both sides. Suitable for: Multi Top media columns, each from size 5 upwards. Colour: Light grey RAL 7035, powder-coated. Supplied with: Fastening material. Note: Not suitable for size 3 media columns. 92 9210_1500 suitable for type 1000 1500 2000 Multi Top perforated panel 92 9210 9GR eShop eShop eShop single-sided Multi Top perforated panel 92 9211 9GR eShop eShop eShop double-sided Height mm 481 Width mm 920 1420 1920 Depth mm 25 Load capacity, distributed kg 100 Weight (92 9210) kg 6 9 12 Application example on Multi Top: Weight (92 9211) kg 12 18 24 Mounting across two levels 203
