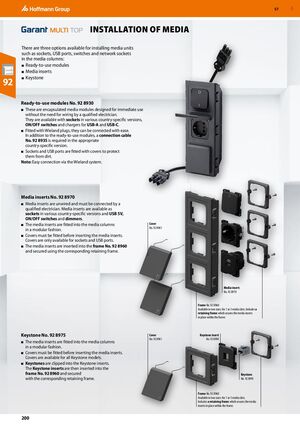

GBP 57 INSTALLATION OF MEDIA There are three options available for installing media units such as sockets, USB ports, switches and network sockets in the media columns: ■ Ready-to-use modules ■ Media inserts ■ Keystone 92 Ready-to-use modules No. 92 8930 ■ These are encapsulated media modules designed for immediate use without the need for wiring by a qualified electrician. They are available with sockets in various country-specific versions, ON/OFF switches and chargers for USB-A and USB-C. ■ Fitted with Wieland plugs, they can be connected with ease. In addition to the ready-to-use modules, a connection cable No. 92 8935 is required in the appropriate country-specific version. ■ Sockets and USB ports are fitted with covers to protect them from dirt. Note: Easy connection via the Wieland system. Media inserts No. 92 8970 ■ Media inserts are unwired and must be connected by a qualified electrician. Media inserts are available as sockets in various country-specific versions and USB 5V, ON/OFF switches and dimmers. ■ The media inserts are fitted into the media columns Cover No. 92 8961 in a modular fashion. ■ Covers must be fitted before inserting the media inserts. Covers are only available for sockets and USB ports. ■ The media inserts are inserted into the frame No. 92 8960 and secured using the corresponding retaining frame. Media insert: No. 92 8970 Frame No. 92 8960 Available in two sizes: for 1 or 3 media slots. Includes a retaining frame which secures the media inserts in place within the frame. Keystone No. 92 8975 Cover Keystone insert No. 92 8961 No. 92 8990 ■ The media inserts are fitted into the media columns in a modular fashion. ■ Covers must be fitted before inserting the media inserts. Covers are available for all Keystone models. ■ Keystones are clipped into the Keystone inserts. The Keystone inserts are then inserted into the frame No. 92 8960 and secured Keystone with the corresponding retaining frame. No. 92 8995 Frame No. 92 8960 Available in two sizes: for 1 or 3 media slots. Includes a retaining frame which secures the media inserts in place within the frame. 200
