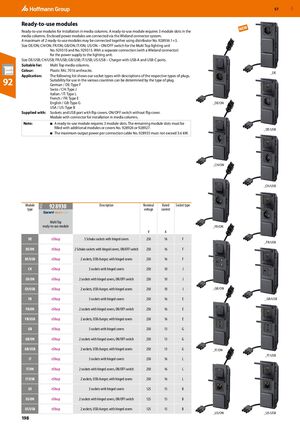

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 198

GBP 57 ​Ready-to-use modules Ready-to-use modules for installation in media columns. A ready-to-use module requires 3 module slots in the NEW media columns. Enclosed power modules are connected via the Wieland connector system. A maximum of 2 ready-to-use modules may be connected together using distributor No. 928936 1+3. Size DE/ON; CH/ON; FR/ON; GB/ON; IT/ON; US/ON – ON/OFF switch for the Multi Top lighting unit No. 929310 and No. 929315. With a separate connection (with a Wieland connector) for the power supply to the lighting unit. Size DE/USB; CH/USB; FR/USB; GB/USB; IT/USB; US/USB – Charger with USB-A and USB-C ports. Suitable for: Multi Top media columns. Colour: Plastic RAL 7016 anthracite. _DE Application: The following list shows our socket types with descriptions of the respective types of plugs. 92 Suitability for use in the various countries can be determined by the type of plug. German / DE: Type F Swiss / CH: Type J Italian / IT: Type L French / FR: Type E English / GB: Type G _DE/ON USA / US: Type B Supplied with: Sockets and USB port with flip covers. ON/OFF switch without flip cover. Module with connector for installation in media columns. Note: ■ A ready-to-use module requires 3 module slots. The remaining module slots must be filled with additional modules or covers No. 928926 or 928927. _DE/USB ■ The maximum output power per connection cable No. 928935 must not exceed 3.6 kW. _CH/ON _CH/USB Module 92 8930 Description Nominal Rated Socket type 9GQ type voltage current Multi Top ready-to-use module _FR/ON ​ V A ​ DE eShop 3 Schuko sockets with hinged covers 250 16 F _FR/USB DE/ON eShop 2 Schuko sockets with hinged covers, ON/OFF switch 250 16 F DE/USB eShop 2 sockets, USB charger, with hinged covers 250 16 F CH eShop 3 sockets with hinged covers 250 10 J CH/ON eShop 2 sockets with hinged covers, ON/OFF switch 250 10 J CH/USB eShop 2 sockets, USB charger, with hinged covers 250 10 J _GB/ON FR eShop 3 sockets with hinged covers 250 16 E _GB/USB FR/ON eShop 2 sockets with hinged covers, ON/OFF switch 250 16 E FR/USB eShop 2 sockets, USB charger, with hinged covers 250 16 E GB eShop 3 sockets with hinged covers 250 13 G GB/ON eShop 2 sockets with hinged covers, ON/OFF switch 250 13 G GB/USB eShop 2 sockets, USB charger, with hinged covers 250 13 G _IT/ON _IT/USB IT eShop 3 sockets with hinged covers 250 16 L IT/ON eShop 2 sockets with hinged covers, ON/OFF switch 250 16 L IT/USB eShop 2 sockets, USB charger, with hinged covers 250 16 L US eShop 3 sockets with hinged covers 125 15 B US/ON eShop 2 sockets with hinged covers, ON/OFF switch 125 15 B US/USB eShop 2 sockets, USB charger, with hinged covers 125 15 B _US/ON _US/USB 198
