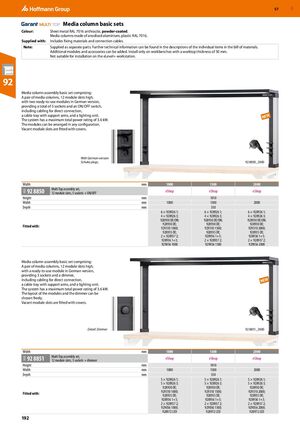

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 192

GBP 57 ​ Media column basic sets Colour: Sheet metal RAL 7016 anthracite, powder-coated. Media columns made of anodised aluminium, plastic RAL 7016. Supplied with: Includes fixing materials and connection cables. Note: Supplied as separate parts. Further technical information can be found in the descriptions of the individual items in the bill of materials. Additional modules and accessories can be added. Install only on workbenches with a worktop thickness of 50 mm. Not suitable for installation on the eLevel+ workstation. 92 Media column assembly basic set comprising: A pair of media columns, 12 module slots high, with two ready-to-use modules in German version, providing a total of 5 sockets and an ON/OFF switch, including cabling for direct connection, a cable tray with support arms, and a lighting unit. NEW The system has a maximum total power rating of 3.6 kW. The modules can be arranged in any configuration. Vacant module slots are fitted with covers. ​With German-version Schuko plugs. ​ 92 8850_2000 Width mm 1000 1500 2000 Multi Top assembly set, 92 8850 9GR eShop eShop eShop 12 module slots, 5 sockets + ON/OFF Height mm 1010 Width mm 1000 1500 2000 Depth mm 550 6 × 928926 1; 6 × 928926 1; 6 × 928926 1; 4 × 928926 3; 4 × 928926 3; 4 × 928926 3; 928930 DE/ON; 928930 DE/ON; 928930 DE/ON; 928930 DE; 928930 DE; 928930 DE; Fitted with: 929310 1000; 929310 1500; 929310 2000; 928935 DE; 928935 DE; 928935 DE; 2 × 928937 2; 928936 1+3; 928936 1+3; 928936 1+3; 2 × 928937 2; 2 × 928937 2; 929056 1000 929056 1500 929056 2000 Media column assembly basic set comprising: A pair of media columns, 12 module slots high, with a ready-to-use module in German version, providing 3 sockets and a dimmer, including cabling for direct connection, NEW a cable tray with support arms, and a lighting unit. The system has a maximum total power rating of 3.6 kW. The layout of the modules and the dimmer can be chosen freely. Vacant module slots are fitted with covers. Detail: Dimmer ​ 92 8851_2000 Width mm 1000 1500 2000 Multi Top assembly set, 92 8851 9GR 12 module slots, 3 sockets + dimmer eShop eShop eShop Height mm 1010 Width mm 1000 1500 2000 Depth mm 550 5 × 928926 1; 5 × 928926 1; 5 × 928926 1; 5 × 928926 3; 5 × 928926 3; 5 × 928926 3; 928930 DE; 928930 DE; 928930 DE; 929310 1000; 929310 1500; 929310 2000; Fitted with: 928935 DE; 928935 DE; 928935 DE; 928936 1+3; 928936 1+3; 928936 1+3; 2 × 928937 2; 2 × 928937 2; 2 × 928937 2; 929056 1000; 929056 1500; 929056 2000; 928972 LED 928972 LED 928972 LED 192
