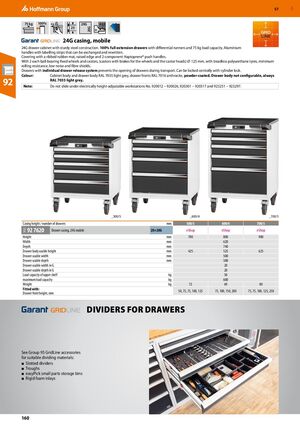

Производственная мебель и системы хранения Hoffmann Group 2026 - страница 160

GBP 57 75 kg 100% 20G 25 20G 24G casing, mobile 24G drawer cabinet with sturdy steel construction. 100% full extension drawers with differential runners and 75 kg load capacity. Aluminium handles with labelling strips that can be exchanged and rewritten. Covering with a ribbed rubber mat, raised edge and 2-component Haptoprene® push handles. With 2 each ball-bearing fixed wheels and castors, (castors with brakes for the wheels and the castor heads) ⌀ 125 mm, with treadless polyurethane tyres, minimum rolling resistance, low noise and fibre shields. Drawers with individual drawer release system prevents the opening of drawers during transport. Can be locked centrally with cylinder lock. Colour: Cabinet body and drawer body RAL 7035 light grey, drawer fronts RAL 7016 anthracite, powder-coated. Drawer body not configurable, always 92 Note: RAL 7035 light grey. Do not slide under electrically height-adjustable workstations No. 920012 – 920026, 920301 – 920317 and 923251 – 923297. _500/5 _600/4 _700/5 Casing height / number of drawers mm 500/5 600/4 700/5 92 7620 9GG Drawer casing, 24G mobile 20×20G eShop eShop eShop Height mm 700 800 900 Width mm 620 Depth mm 740 Drawer body usable height mm 425 525 625 Drawer usable width mm 500 Drawer usable depth mm 500 Drawer usable width in G 20 Drawer usable depth in G 20 Load capacity of upper shelf kg 50 maximum load capacity kg 600 Weight kg 72 69 80 Fitted with: 50, 75, 75, 100, 125 75, 100, 150, 200 75, 75, 100, 125, 250 Drawer front height, mm DIVIDERS FOR DRAWERS See Group 95 GridLine accessories for suitable dividing materials: ■ Slotted dividers ■ Troughs ■ easyPick small parts storage bins ■ Rigid foam inlays 160
