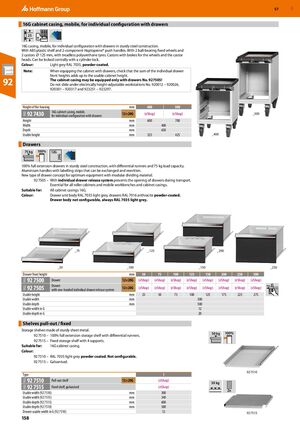

GBP 57 16G cabinet casing, mobile, for individual configuration with drawers ​ 25 16G casing, mobile, for individual configuration with drawers in sturdy steel construction. With ABS plastic shelf and 2-component Haptoprene® push handles. With 2 ball-bearing fixed wheels and 2 castors ⌀ 125 mm, with treadless polyurethane tyres. Castors with brakes for the wheels and the castor heads. Can be locked centrally with a cylinder lock. Colour: Light grey RAL 7035, powder-coated. Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. 92 The cabinet casing may be equipped only with drawers No. 927505! Do not slide under electrically height-adjustable workstations No. 920012 – 920026, 920301 – 920317 and 923251 – 923297. Height of the housing mm 400 500 16G cabinet casing, mobile, 92 7430 9GG 12×20G (eShop) (eShop) _500 for individual configuration with drawers Height mm 600 700 Width mm 400 Depth mm 650 Usable height mm 325 425 _400 Drawers ​ 75 kg 100% 12G 20G 100% full extension drawers in sturdy steel construction, with differential runners and 75 kg load capacity. Aluminium handles with labelling strips that can be exchanged and rewritten. New type of drawer concept for optimum equipment with modular dividing material. 92 7505 – With individual drawer release system prevents the opening of drawers during transport. Essential for all roller cabinets and mobile workbenches and cabinet casings. Suitable for: All cabinet casings 16G. Colour: Drawer unit body RAL 7035 light grey, drawers RAL 7016 anthracite powder-coated. Drawer body not configurable, always RAL 7035 light grey. _75 _125 _200 _50 _100 _150 _250 Drawer front height mm 50 75 100 125 150 200 250 300 92 7500 9GG 9GG Drawer 12×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Drawer 92 7505 with one-handed individual drawer release system 12×20G (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Usable height mm 25 50 75 100 125 175 225 275 Usable width mm 300 Usable depth mm 500 Usable width in G 12 Usable depth in G 20 Shelves pull-out / fixed ​ Storage shelves made of sturdy sheet metal. 50 kg 100% 92 7510 – 100% full extension storage shelf with differential runners. 92 7515 – Fixed storage shelf with 4 supports. Suitable for: 16G cabinet casing. Colour: 92 7510 – RAL 7035 light grey powder coated. Not configurable. 92 7515 – Galvanised. 92 7510 Type 1 92 7510 9GG 9GG Pull-out shelf 12×20G (eShop) 30 kg 92 7515 Fixed shelf, galvanised (eShop) Zn Usable width (92 7510) mm 300 Usable width (92 7515) mm 340 Usable depth (92 7515) mm 600 Usable depth (92 7510) mm 500 Drawer usable width in G (92 7510) 12 92 7515 158
